ADCMP582BCPZ-WP

ADCMP582BCPZ-WP Overview

Product belongs to the ADCMP582 series. This product is categorized as Analog Comparators Type: with Latch Tray - Waffle Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-16 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Complementary, PECL Number of channels: 1 Channel Supplier device package: 16-LFCSP-VQ (3x3) Voltage supply range: ±4.5 V ~ 5.5 V 1 element 8mA maximum quiescent current. Maximum propagation delay: 0.18ns Hysteresis value of 1mV 35 ps response time Power-off control: No Shutdown Power-off control: 350 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 8 mA is 92 nA. The EVAL-ADCMP582BCPZ. Maximum supply voltage of 5 V Minimum supply voltage is 2.5 V Complementary with Latch comparator type Input bias current of 30 uA The 10 mV. 180 ps is 23 microseconds. The 75 dB. 44 mA The CMRR-Common-Mode-Rejection-Ratio is 60 dB.

ADCMP582BCPZ-WP Image

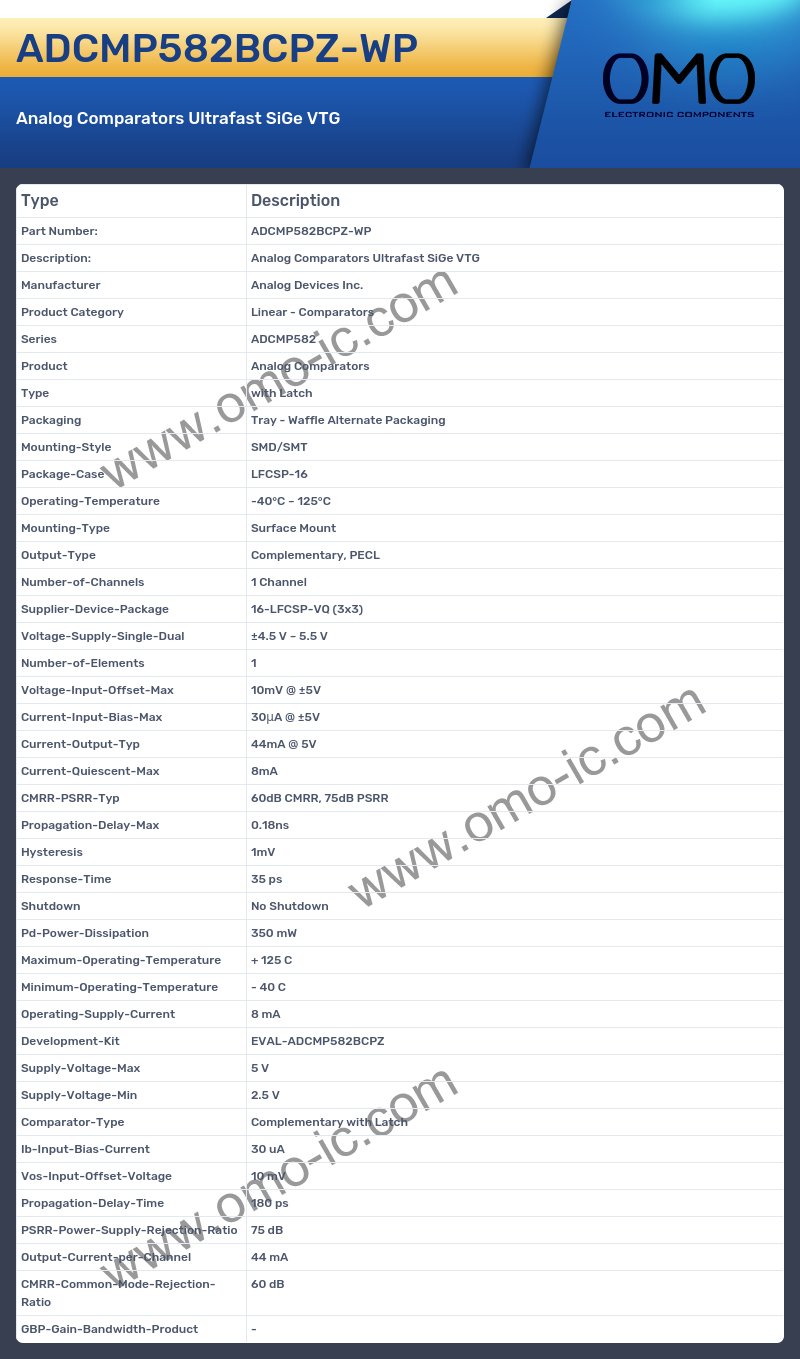

ADCMP582BCPZ-WP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series ADCMP582
• Product Analog Comparators
• Type with Latch
• Packaging Tray - Waffle Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-16
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Complementary, PECL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-LFCSP-VQ (3x3)
• Voltage-Supply-Single-Dual ±4.5 V ~ 5.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 10mV @ ±5V
• Current-Input-Bias-Max 30μA @ ±5V
• Current-Output-Typ 44mA @ 5V
• Current-Quiescent-Max 8mA
• CMRR-PSRR-Typ 60dB CMRR, 75dB PSRR
• Propagation-Delay-Max 0.18ns
• Hysteresis 1mV
• Response-Time 35 ps
• Shutdown No Shutdown
• Pd-Power-Dissipation 350 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 8 mA
• Development-Kit EVAL-ADCMP582BCPZ
• Supply-Voltage-Max 5 V
• Supply-Voltage-Min 2.5 V
• Comparator-Type Complementary with Latch
• Ib-Input-Bias-Current 30 uA
• Vos-Input-Offset-Voltage 10 mV
• Propagation-Delay-Time 180 ps
• PSRR-Power-Supply-Rejection-Ratio 75 dB
• Output-Current-per-Channel 44 mA
• CMRR-Common-Mode-Rejection-Ratio 60 dB
• GBP-Gain-Bandwidth-Product -
