ADCMP572BCPZ-WP

ADCMP572BCPZ-WP Overview

Product belongs to the ADCMP572 series. This product is categorized as Analog Comparators Type: with Latch Tray - Waffle Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: CML, Complementary Number of channels: 1 Channel Supplier device package: 16-LFCSP-VQ (3x3) Voltage supply range: 3.1 V ~ 5.4 V 1 element 52mA maximum quiescent current. Maximum propagation delay: 0.165ns Hysteresis value of ±1mV Power-off control: No Shutdown Power-off control: 230 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 52 mA is 92 nA. The EVAL-ADCMP572BCPZ. Maximum supply voltage of 5.4 V Minimum supply voltage is 3.1 V General Purpose with Latch comparator type Input bias current of 25 uA The 5 mV. 150 ps is 23 microseconds. The 74 dB. The CMRR-Common-Mode-Rejection-Ratio is 65 dB.

ADCMP572BCPZ-WP Image

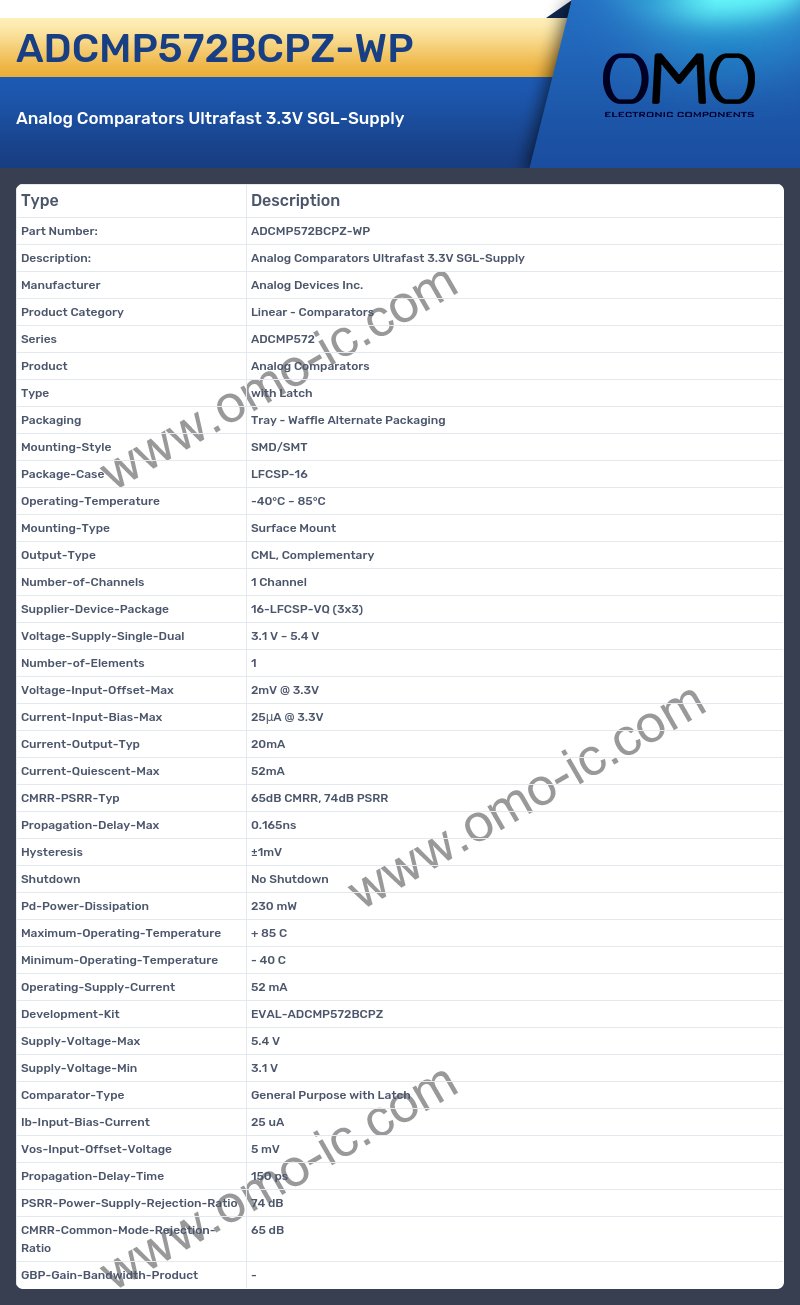

ADCMP572BCPZ-WP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series ADCMP572
• Product Analog Comparators
• Type with Latch
• Packaging Tray - Waffle Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type CML, Complementary
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-LFCSP-VQ (3x3)
• Voltage-Supply-Single-Dual 3.1 V ~ 5.4 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 2mV @ 3.3V
• Current-Input-Bias-Max 25μA @ 3.3V
• Current-Output-Typ 20mA
• Current-Quiescent-Max 52mA
• CMRR-PSRR-Typ 65dB CMRR, 74dB PSRR
• Propagation-Delay-Max 0.165ns
• Hysteresis ±1mV
• Shutdown No Shutdown
• Pd-Power-Dissipation 230 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 52 mA
• Development-Kit EVAL-ADCMP572BCPZ
• Supply-Voltage-Max 5.4 V
• Supply-Voltage-Min 3.1 V
• Comparator-Type General Purpose with Latch
• Ib-Input-Bias-Current 25 uA
• Vos-Input-Offset-Voltage 5 mV
• Propagation-Delay-Time 150 ps
• PSRR-Power-Supply-Rejection-Ratio 74 dB
• CMRR-Common-Mode-Rejection-Ratio 65 dB
• GBP-Gain-Bandwidth-Product -
