ADCMP565BP

ADCMP565BP Overview

Product belongs to the GAD53519 series. This product is categorized as Analog Comparators Type: with Latch Tube is the packaging method for this product Weight of 0.025468 oz SMD/SMT Mounting-Style PLCC-20 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Output-Type: Complementary, Differential, ECL, Open-Emitter Number of channels: 2 Channel Supplier device package: 20-PLCC (9x9) Voltage supply range: ±4.75 V ~ 5.25 V 2 element 18mA, 80mA maximum quiescent current. Maximum propagation delay: 0.375ns Hysteresis value of ±1mV Power-off control: No Shutdown Power-off control: 490 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 18 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Differential comparator type Input bias current of 40 uA The 6 mV. 310 ps is 23 microseconds. The CMRR-Common-Mode-Rejection-Ratio is 69 dB.

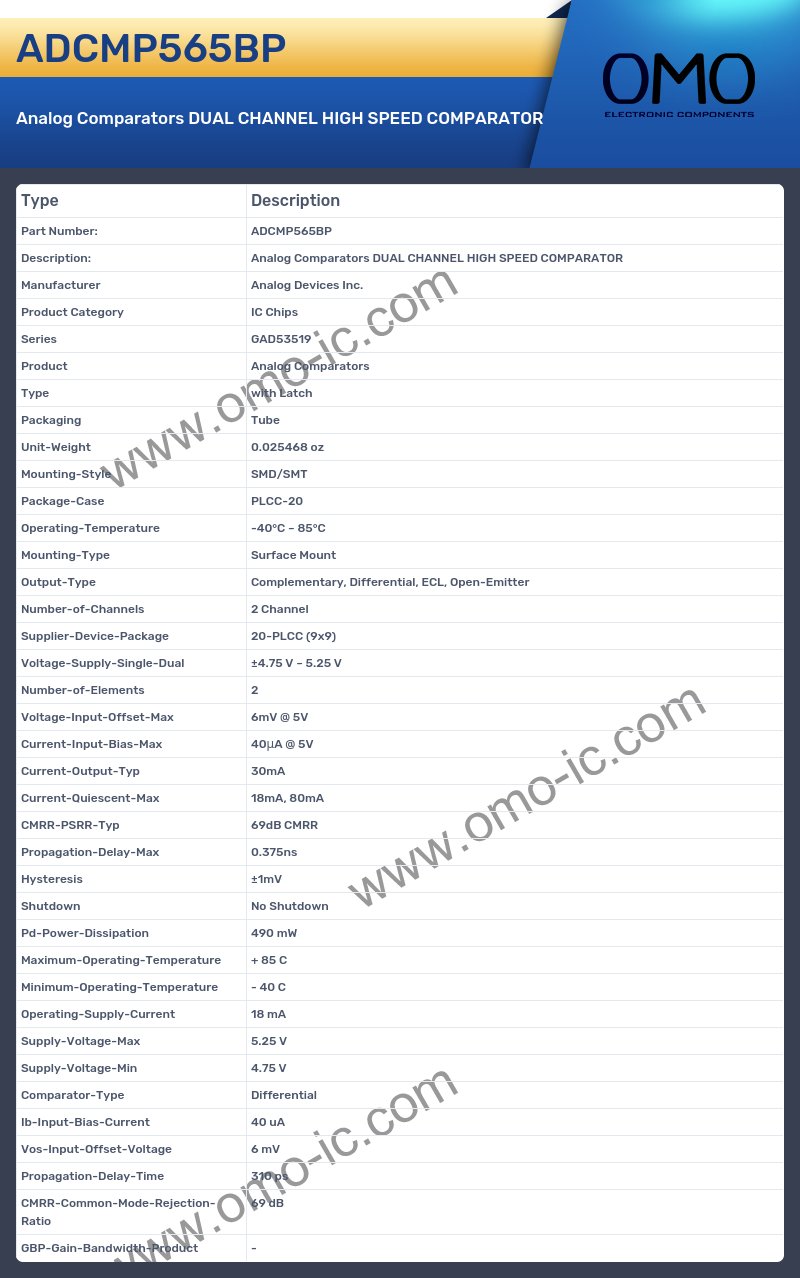

ADCMP565BP Image

ADCMP565BP Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series GAD53519
• Product Analog Comparators
• Type with Latch
• Packaging Tube
• Unit-Weight 0.025468 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-20
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Output-Type Complementary, Differential, ECL, Open-Emitter
• Number-of-Channels 2 Channel
• Supplier-Device-Package 20-PLCC (9x9)
• Voltage-Supply-Single-Dual ±4.75 V ~ 5.25 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 6mV @ 5V
• Current-Input-Bias-Max 40μA @ 5V
• Current-Output-Typ 30mA
• Current-Quiescent-Max 18mA, 80mA
• CMRR-PSRR-Typ 69dB CMRR
• Propagation-Delay-Max 0.375ns
• Hysteresis ±1mV
• Shutdown No Shutdown
• Pd-Power-Dissipation 490 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 18 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 40 uA
• Vos-Input-Offset-Voltage 6 mV
• Propagation-Delay-Time 310 ps
• CMRR-Common-Mode-Rejection-Ratio 69 dB
• GBP-Gain-Bandwidth-Product -
