ADC12030CIWMX

ADC12030CIWMX Overview

Product belongs to the ADC12030 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style SOIC-Wide-16 The Differential, Pseudo-Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 16-SOIC This product's 114k. Data-Interface: SPI 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial Microwire interface type The 3 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 114 kS/s Sampling Rate Analog supply voltage: 5 V Digital Supply Voltage: 4.5 V to 5.5 V Integral Nonlinearity: 1 LSB Differential nonlinearity: 1 LSB

ADC12030CIWMX Image

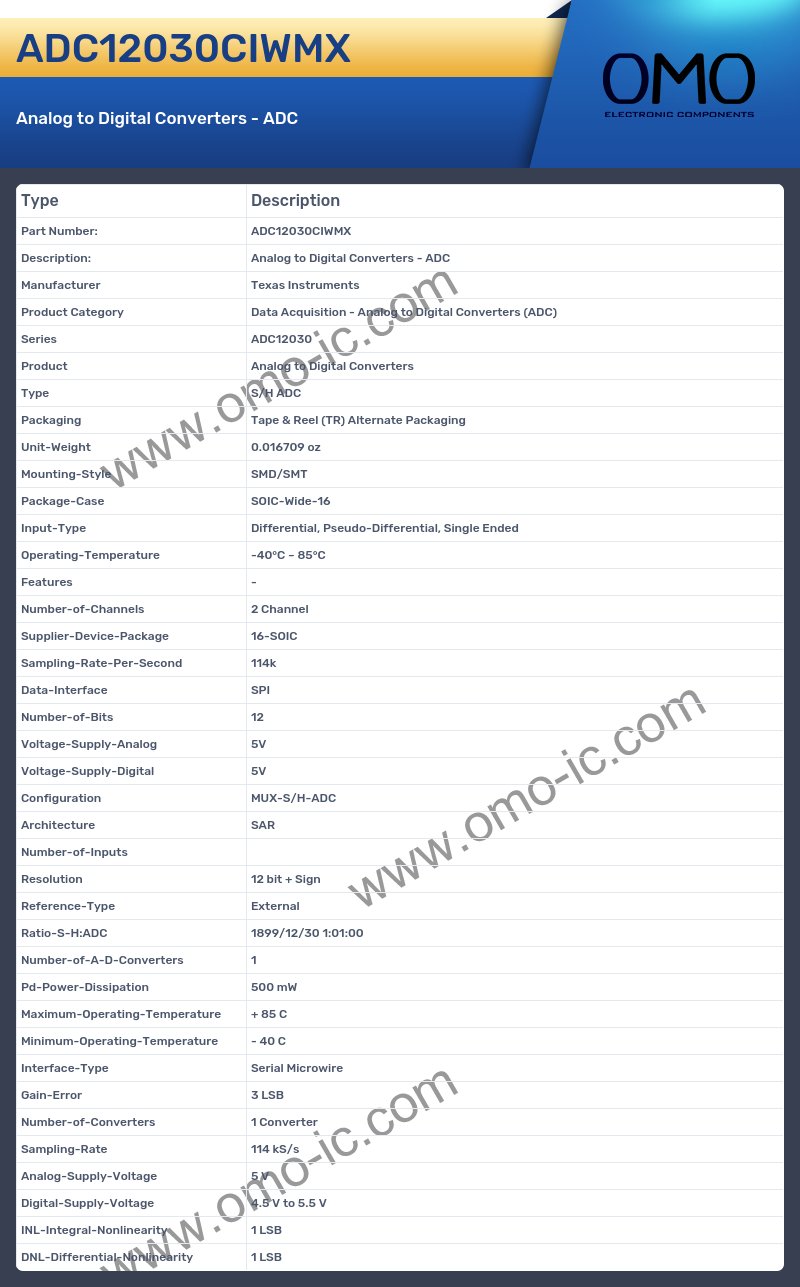

ADC12030CIWMX Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADC12030
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-Wide-16
• Input-Type Differential, Pseudo-Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 2 Channel
• Supplier-Device-Package 16-SOIC
• Sampling-Rate-Per-Second 114k
• Data-Interface SPI
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 12 bit + Sign
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial Microwire
• Gain-Error 3 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 114 kS/s
• Analog-Supply-Voltage 5 V
• Digital-Supply-Voltage 4.5 V to 5.5 V
• INL-Integral-Nonlinearity 1 LSB
• DNL-Differential-Nonlinearity 1 LSB
