ADADC85S-12

ADADC85S-12 Overview

Product belongs to the ADADC85 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-SB-32 The Single Ended for this product is CMOS/TTL. Operational temperature range: -25°C ~ 85°C Number of channels: 1 Channel Supplier device package: 32-CDIP Side Brazed This product's -. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±15V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is SAR . Internal is the reference type. 1 units Power-off control: 1500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C Parallel interface type The +/- 0.25 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter Integral Nonlinearity: +/- 0.012 %FSR Differential nonlinearity: +/- 0.5 LSB

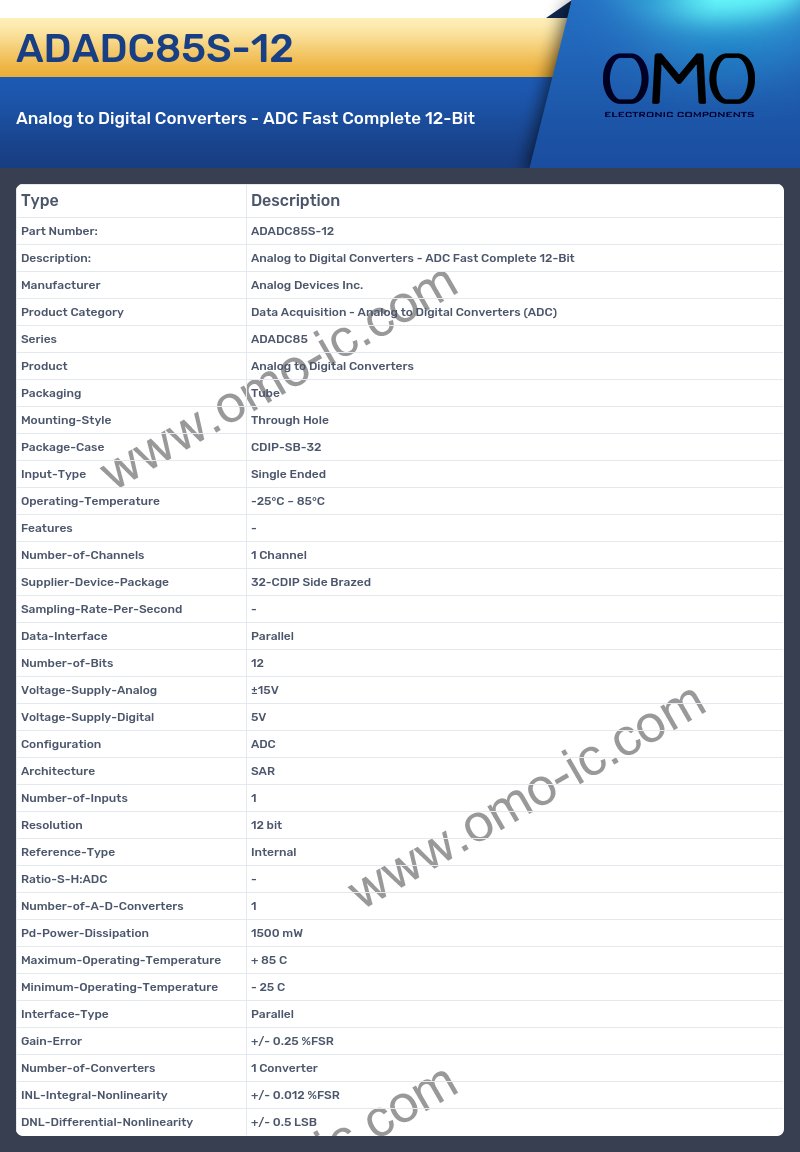

ADADC85S-12 Image

ADADC85S-12 Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADADC85
• Product Analog to Digital Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-SB-32
• Input-Type Single Ended
• Operating-Temperature -25°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 32-CDIP Side Brazed
• Sampling-Rate-Per-Second -
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±15V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 1500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Interface-Type Parallel
• Gain-Error +/- 0.25 %FSR
• Number-of-Converters 1 Converter
• INL-Integral-Nonlinearity +/- 0.012 %FSR
• DNL-Differential-Nonlinearity +/- 0.5 LSB
