ADADC71KD

ADADC71KD Overview

Product belongs to the ADADC71 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-BB-32 The Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 1 Channel Supplier device package: 32-CDIP Bottom Brazed This product's 20k. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±15V. The Voltage Supply Digital for this product is ±5V. Configuration ADC The architecture of this product is SAR . Internal is the reference type. 1 units Power-off control: 850 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C This product has a Power Consumption of 645 mW. Parallel Serial interface type The +/- 0.2 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 20 kS/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR Differential nonlinearity: +/- 0.003 %FSR

ADADC71KD Image

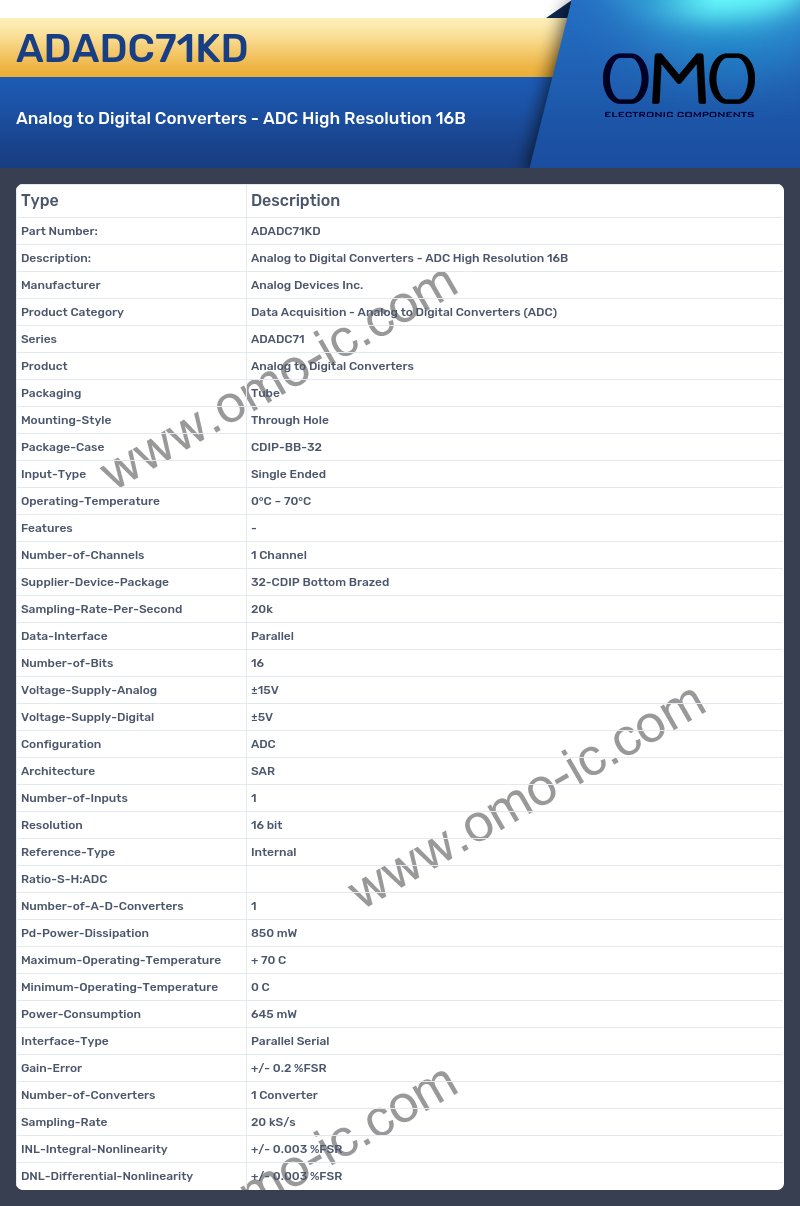

ADADC71KD Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series ADADC71
• Product Analog to Digital Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-BB-32
• Input-Type Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 32-CDIP Bottom Brazed
• Sampling-Rate-Per-Second 20k
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±15V
• Voltage-Supply-Digital ±5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 850 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Power-Consumption 645 mW
• Interface-Type Parallel Serial
• Gain-Error +/- 0.2 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 20 kS/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
• DNL-Differential-Nonlinearity +/- 0.003 %FSR
