AD9774ASZRL

AD9774ASZRL Overview

Product belongs to the TxDAC+R series. Tape & Reel (TR) is the packaging method for this product 44-QFP Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 44-MQFP (10x10) Data-Interface: Parallel 14 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is Current Source . External, Internal is the reference type. Number of D-A converters: 1 The 35μs (Typ) is an impressive 15 us. Yes Differential-Output

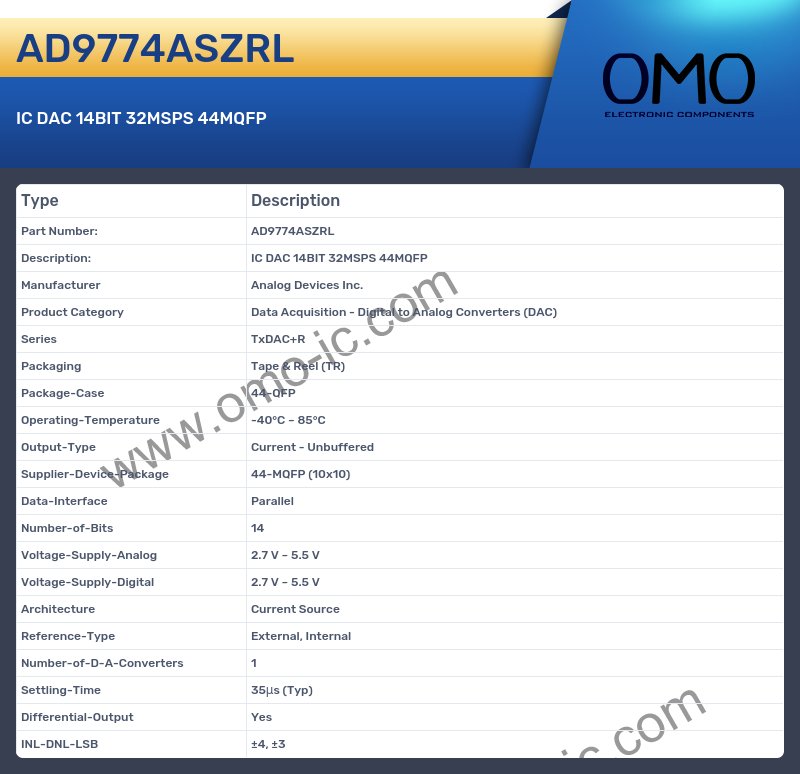

AD9774ASZRL Image

AD9774ASZRL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TxDAC+R
• Packaging Tape & Reel (TR)
• Package-Case 44-QFP
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 44-MQFP (10x10)
• Data-Interface Parallel
• Number-of-Bits 14
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture Current Source
• Reference-Type External, Internal
• Number-of-D-A-Converters 1
• Settling-Time 35μs (Typ)
• Differential-Output Yes
• INL-DNL-LSB ±4, ±3
