AD974BRZ Overview

Product belongs to the AD974 series. This product is categorized as Analog to Digital Converters Type: Data Acquisition System (DAS) Tube is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 The Single-Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Number of channels: 4 Channel Voltage Supply Range: 4.75 V ~ 5.25 V Supplier device package: 28-SOIC W Resolution-Bits: 16 b This product's 200k. Data-Interface: Serial Voltage supply source: Analog and digital Analog and Digital The architecture of this product is SAR . External Internal is the reference type. Power-off control: 120 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 0.05 mW. Serial SPI interface type Signal-to-Noise Ratio of 85 dB The +/- 0.25 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 200 kS/s Sampling Rate Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: - 1 LSB/1.75 LSB

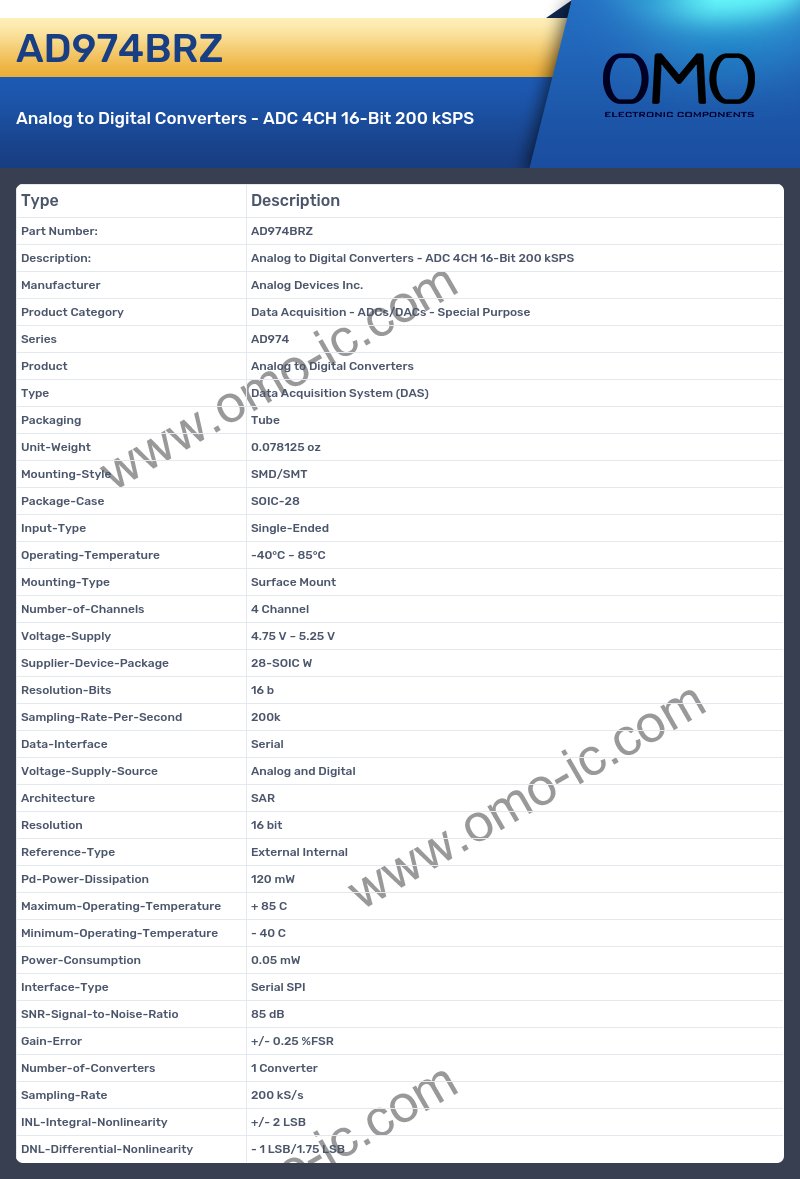

AD974BRZ Image

AD974BRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series AD974
• Product Analog to Digital Converters
• Type Data Acquisition System (DAS)
• Packaging Tube
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Single-Ended
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Number-of-Channels 4 Channel
• Voltage-Supply 4.75 V ~ 5.25 V
• Supplier-Device-Package 28-SOIC W
• Resolution-Bits 16 b
• Sampling-Rate-Per-Second 200k
• Data-Interface Serial
• Voltage-Supply-Source Analog and Digital
• Architecture SAR
• Resolution 16 bit
• Reference-Type External Internal
• Pd-Power-Dissipation 120 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 0.05 mW
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 85 dB
• Gain-Error +/- 0.25 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 200 kS/s
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity - 1 LSB/1.75 LSB
