AD9714BCPZ

AD9714BCPZ Overview

Product belongs to the TxDACR series. This product is categorized as Digital to Analog Converters Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-40 Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Number of channels: 2 Channel Supplier device package: 40-LFCSP-VQ (6x6) Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 1.7 V ~ 3.5 V. The Voltage Supply Digital for this product is 1.7 V ~ 1.9 V. The architecture of this product is Segmented DAC . External, Internal is the reference type. Number of D-A converters: 2 The - is an impressive 15 us. Yes Differential-Output Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C The AD9714-DPG2-EBZ. Maximum supply voltage of 3.3 V Minimum supply voltage is 1.8 V Number-of-Converters: 2 Converter 125 MS/s Sampling Rate

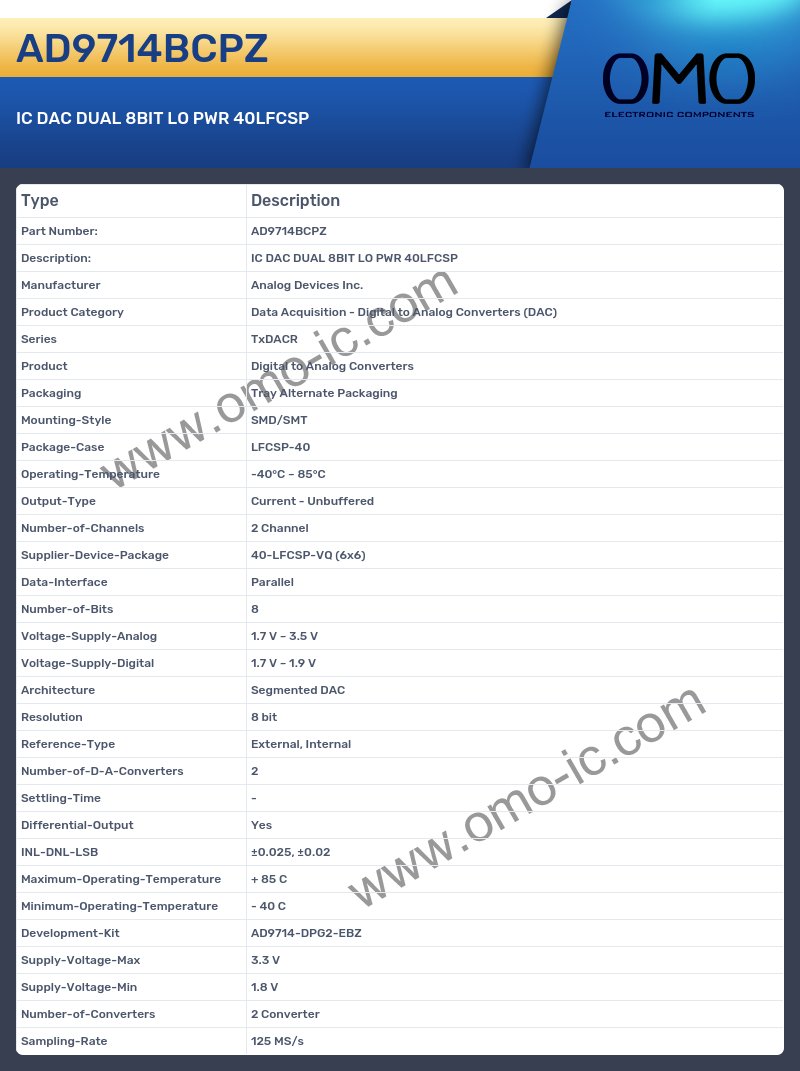

AD9714BCPZ Image

AD9714BCPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TxDACR
• Product Digital to Analog Converters
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-40
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Number-of-Channels 2 Channel
• Supplier-Device-Package 40-LFCSP-VQ (6x6)
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 1.7 V ~ 3.5 V
• Voltage-Supply-Digital 1.7 V ~ 1.9 V
• Architecture Segmented DAC
• Resolution 8 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 2
• Settling-Time -
• Differential-Output Yes
• INL-DNL-LSB ±0.025, ±0.02
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Development-Kit AD9714-DPG2-EBZ
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 1.8 V
• Number-of-Converters 2 Converter
• Sampling-Rate 125 MS/s
