AD9289BBC

AD9289BBC Overview

Product belongs to the AD9289 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray is the packaging method for this product Weight of 0.006004 oz SMD/SMT Mounting-Style BGA-64 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 4 Channel Supplier device package: 64-CSPBGA (8x8) This product's 65M. Data-Interface: LVDS - Serial 8 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 4 units Power-off control: 550 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 550 mW. Serial interface type Signal-to-Noise Ratio of 47.5 dB The +/- 2.5 %FSR of this product is 0.2%. Number-of-Converters: 4 Converter 65 MS/s Sampling Rate Integral Nonlinearity: +/- 0.6 LSB Differential nonlinearity: +/- 0.6 LSB

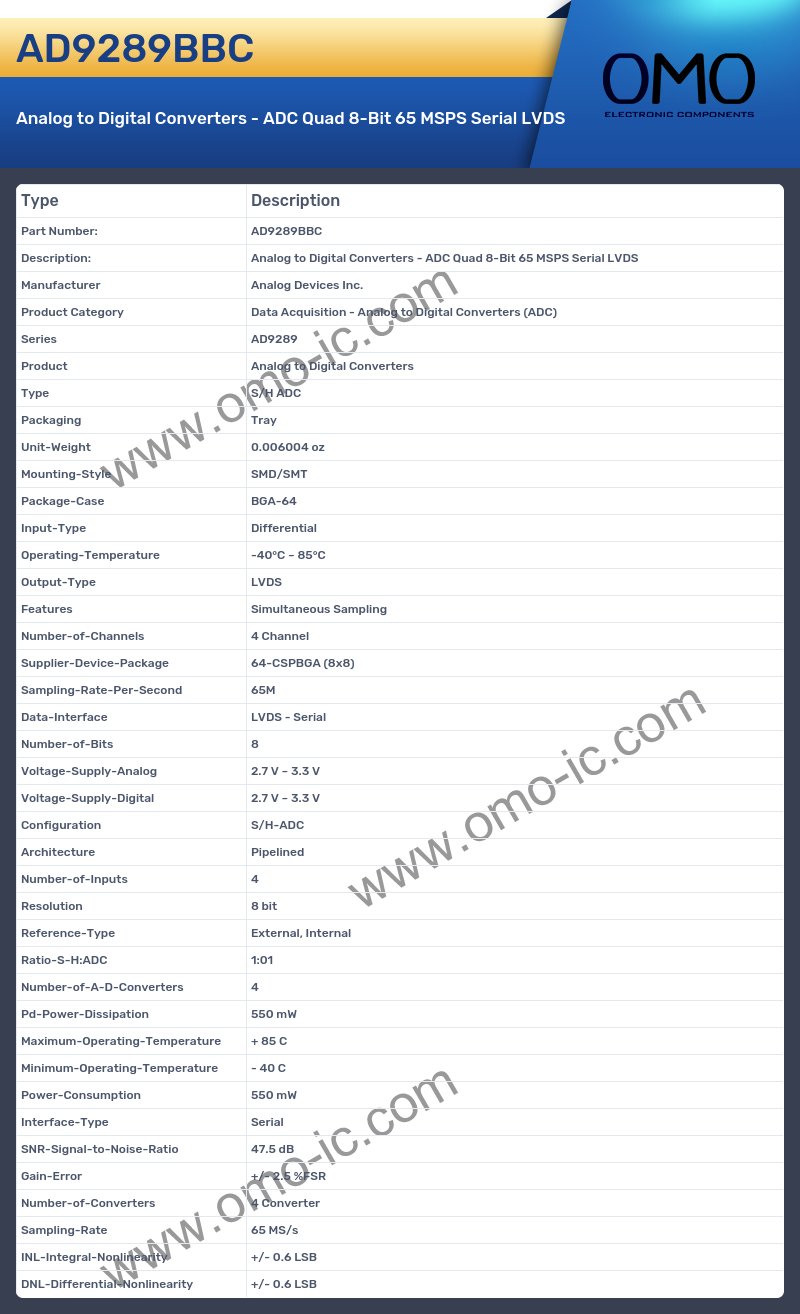

AD9289BBC Image

AD9289BBC Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD9289
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tray
• Unit-Weight 0.006004 oz
• Mounting-Style SMD/SMT
• Package-Case BGA-64
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 64-CSPBGA (8x8)
• Sampling-Rate-Per-Second 65M
• Data-Interface LVDS - Serial
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 3.3 V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 4
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 4
• Pd-Power-Dissipation 550 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 550 mW
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 47.5 dB
• Gain-Error +/- 2.5 %FSR
• Number-of-Converters 4 Converter
• Sampling-Rate 65 MS/s
• INL-Integral-Nonlinearity +/- 0.6 LSB
• DNL-Differential-Nonlinearity +/- 0.6 LSB
