AD9226ASTZ Overview

Product belongs to the AD9226 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tray Alternate Packaging is the packaging method for this product Weight of 0.006409 oz SMD/SMT Mounting-Style LQFP-48 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 48-LQFP (7x7) This product's 65M. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 2.85 V ~ 5.25 V. Configuration S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 500 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 475 mW. Parallel interface type Signal-to-Noise Ratio of 68.9 dB The +/- 2 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 65 MS/s Sampling Rate Integral Nonlinearity: +/- 1.6 LSB Differential nonlinearity: +/- 1 LSB

AD9226ASTZ Image

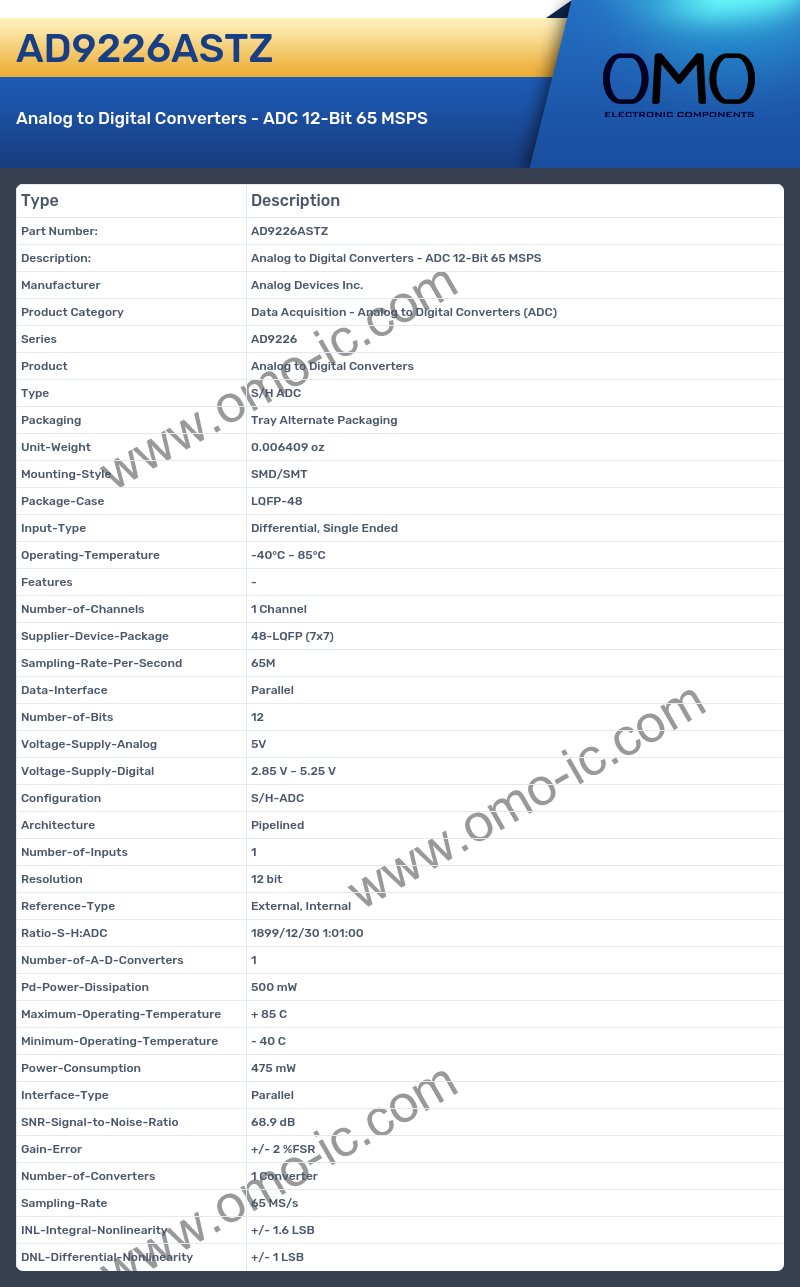

AD9226ASTZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD9226
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tray Alternate Packaging
• Unit-Weight 0.006409 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-48
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 48-LQFP (7x7)
• Sampling-Rate-Per-Second 65M
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 2.85 V ~ 5.25 V
• Configuration S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 1
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 500 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 475 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 68.9 dB
• Gain-Error +/- 2 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 65 MS/s
• INL-Integral-Nonlinearity +/- 1.6 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
