AD9154BCPZ

AD9154BCPZ Overview

Product belongs to the TxDAC+R series. Tray Alternate Packaging is the packaging method for this product 88-VFQFN Exposed Pad, CSP Operational temperature range: -40°C ~ 85°C Output-Type: Current - Unbuffered Supplier device package: 88-LFCSP-VQ (12x12) Data-Interface: JESD204B 16 bits The Voltage-Supply-Analog is 3.13 V ~ 3.47 V. The Voltage Supply Digital for this product is 1.14 V ~ 1.26 V. The architecture of this product is Quad-Switch . Internal is the reference type. Number of D-A converters: 4 The - is an impressive 15 us. Yes Differential-Output

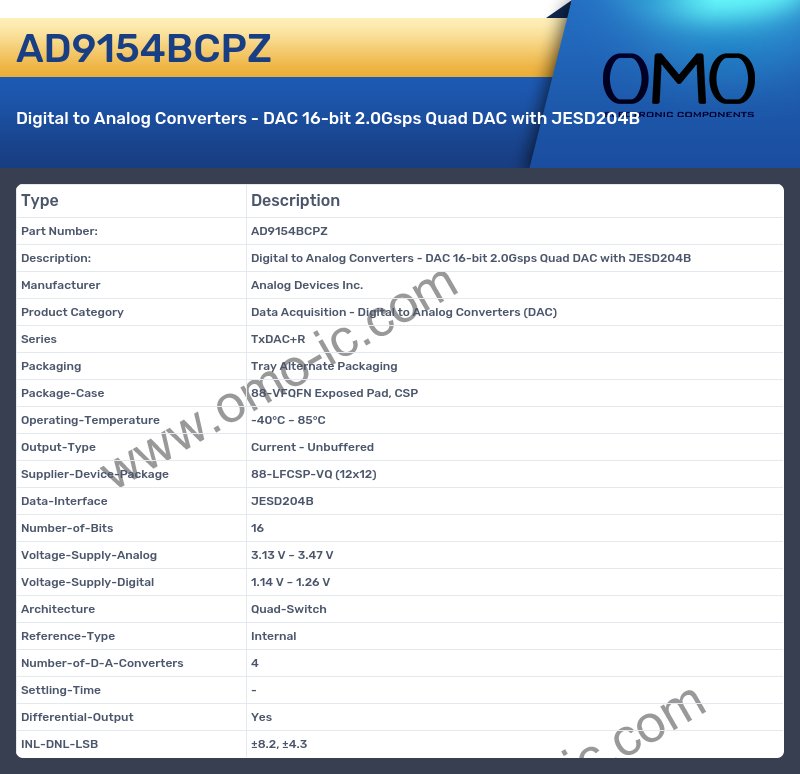

AD9154BCPZ Image

AD9154BCPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TxDAC+R
• Packaging Tray Alternate Packaging
• Package-Case 88-VFQFN Exposed Pad, CSP
• Operating-Temperature -40°C ~ 85°C
• Output-Type Current - Unbuffered
• Supplier-Device-Package 88-LFCSP-VQ (12x12)
• Data-Interface JESD204B
• Number-of-Bits 16
• Voltage-Supply-Analog 3.13 V ~ 3.47 V
• Voltage-Supply-Digital 1.14 V ~ 1.26 V
• Architecture Quad-Switch
• Reference-Type Internal
• Number-of-D-A-Converters 4
• Settling-Time -
• Differential-Output Yes
• INL-DNL-LSB ±8.2, ±4.3
