AD8801ARZ

AD8801ARZ Overview

Product belongs to the TrimDACR series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Unbuffered Number of channels: 8 Channel Supplier device package: 16-SOIC Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 2.7 V ~ 5.5 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.5 V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 8 The 600ns (Typ) is an impressive 15 us. No Differential-Output Power-off control: 20 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 2.7 V Number-of-Converters: 8 Converter 1.7 MS/s Sampling Rate

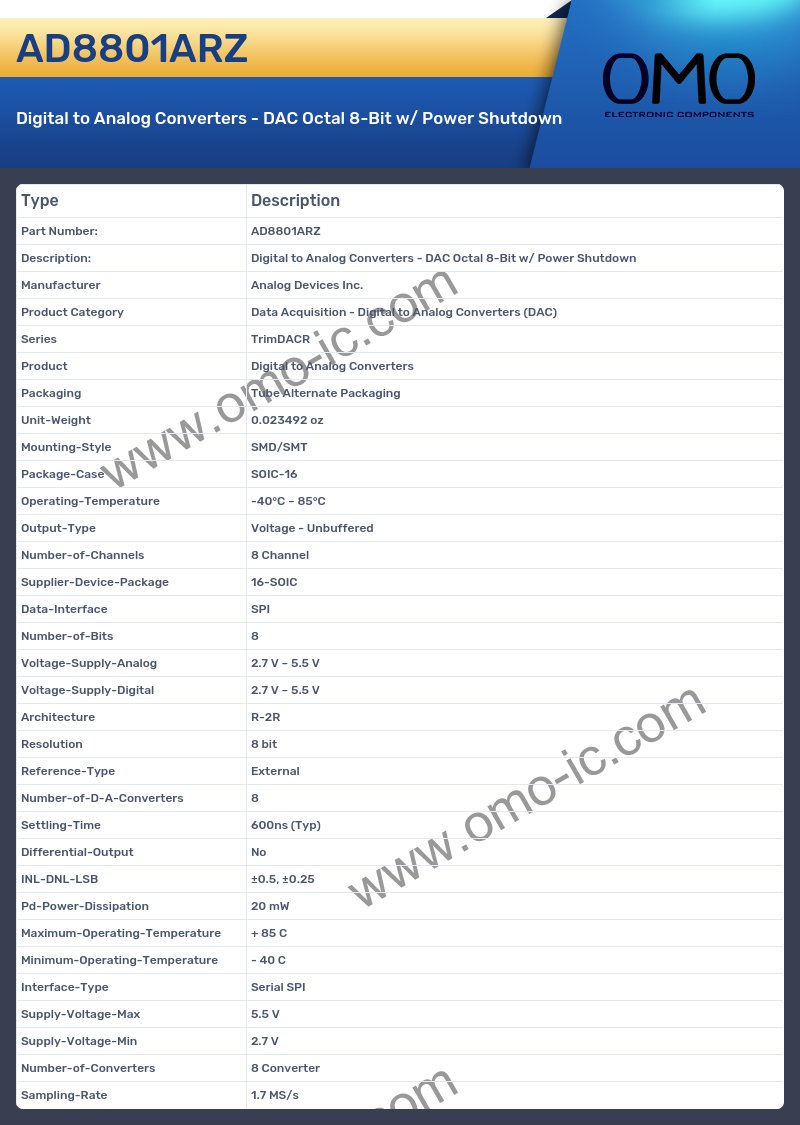

AD8801ARZ Image

AD8801ARZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series TrimDACR
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Unbuffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 16-SOIC
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 5.5 V
• Voltage-Supply-Digital 2.7 V ~ 5.5 V
• Architecture R-2R
• Resolution 8 bit
• Reference-Type External
• Number-of-D-A-Converters 8
• Settling-Time 600ns (Typ)
• Differential-Output No
• INL-DNL-LSB ±0.5, ±0.25
• Pd-Power-Dissipation 20 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 2.7 V
• Number-of-Converters 8 Converter
• Sampling-Rate 1.7 MS/s
