AD829AQ Overview

Product belongs to the AD829 series. This product is categorized as Video Amplifiers Tube is the packaging method for this product Through Hole Mounting-Style CDIP-8 BiCOM is the technology used. The No for this product is CMOS/TTL. Through Hole mounting type Output-Type: No Versatile Voltage Feedback applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-CERDIP 1 is 8. Voltage supply range: ±4.5 V ~ 18 V This product has a 5.3mA of 200μA. The 120MHz The 230 V/μs. Current-Output-Channel is 32mA The amplifier is of General Purpose Amplifier type. Power-off control: No Shutdown Power-off control: 1300 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Input bias current of 7 uA The 0.5 mV. The 98 dB. The CMRR-Common-Mode-Rejection-Ratio is 100 dB. The 1.7 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 600 MHz is the 3-dB bandwidth of the product. 96.26 dB voltage gain

AD829AQ Image

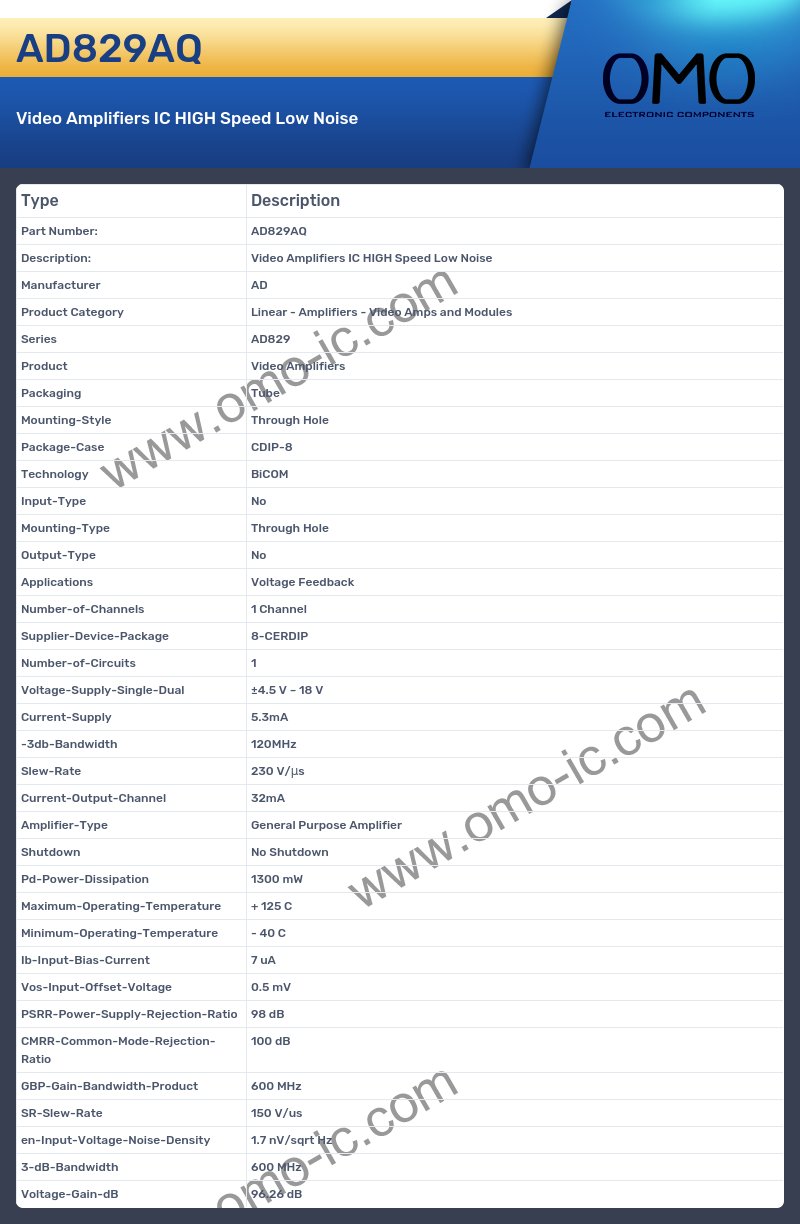

AD829AQ Specifications

• Manufacturer AD
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD829
• Product Video Amplifiers
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-8
• Technology BiCOM
• Input-Type No
• Mounting-Type Through Hole
• Output-Type No
• Applications Voltage Feedback
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-CERDIP
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual ±4.5 V ~ 18 V
• Current-Supply 5.3mA
• -3db-Bandwidth 120MHz
• Slew-Rate 230 V/μs
• Current-Output-Channel 32mA
• Amplifier-Type General Purpose Amplifier
• Shutdown No Shutdown
• Pd-Power-Dissipation 1300 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Ib-Input-Bias-Current 7 uA
• Vos-Input-Offset-Voltage 0.5 mV
• PSRR-Power-Supply-Rejection-Ratio 98 dB
• CMRR-Common-Mode-Rejection-Ratio 100 dB
• GBP-Gain-Bandwidth-Product 600 MHz
• SR-Slew-Rate 150 V/us
• en-Input-Voltage-Noise-Density 1.7 nV/sqrt Hz
• 3-dB-Bandwidth 600 MHz
• Voltage-Gain-dB 96.26 dB
