AD8214ARMZ

AD8214ARMZ Overview

Product belongs to the AD8214 series. This product is categorized as Current Sense Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.004938 oz SMD/SMT Mounting-Style MSOP-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Product function is Current Monitor. Number of channels: 1 Channel Supplier device package: 8-MSOP 5 V ~ 65 V voltage input Topology: Current Shunt Feedback feedback High-Side sensing method Accuracy is rated at - . The amplifier is of Current Sense type. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 1.2 mA is 92 nA. Maximum supply voltage of 65 V Minimum supply voltage is 5 V Input bias current of 30 nA The 3 mV. The 5 V to 65 V. 1 mA The CMRR-Common-Mode-Rejection-Ratio is 80 dB. Maximum Input Resistance" is " 5 MOhms

AD8214ARMZ Image

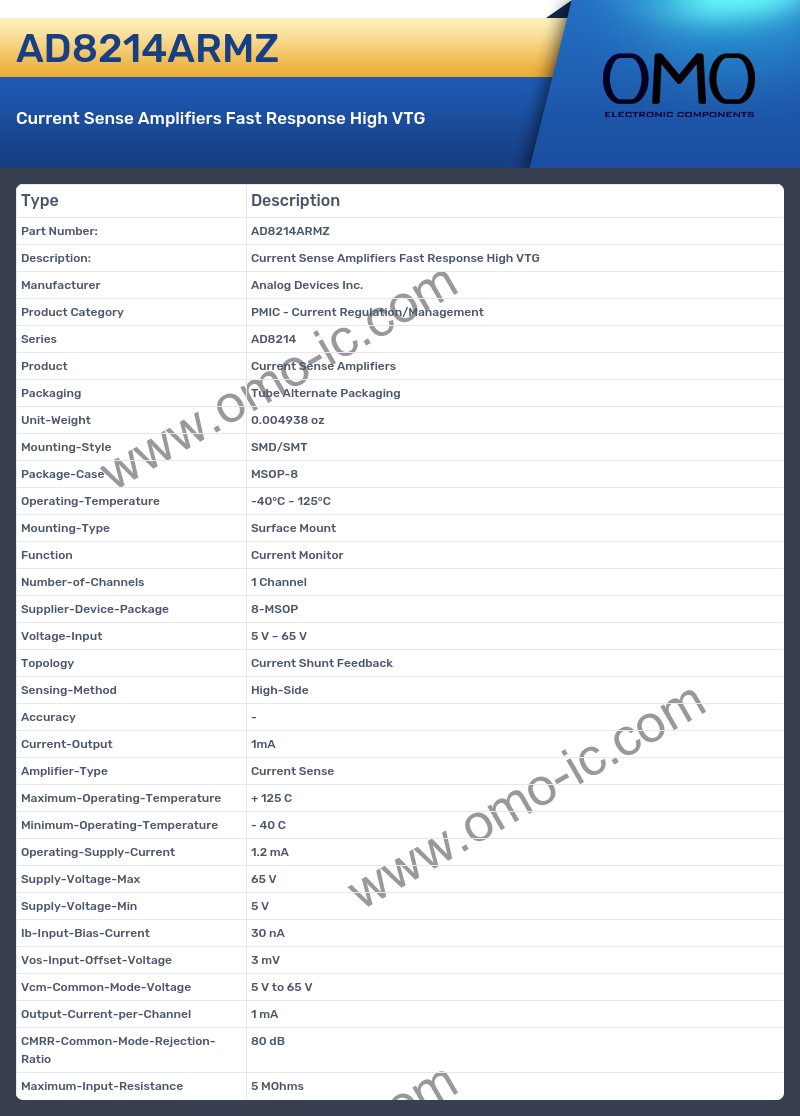

AD8214ARMZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category PMIC - Current Regulation/Management
• Series AD8214
• Product Current Sense Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004938 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Function Current Monitor
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-MSOP
• Voltage-Input 5 V ~ 65 V
• Topology Current Shunt Feedback
• Sensing-Method High-Side
• Accuracy -
• Current-Output 1mA
• Amplifier-Type Current Sense
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.2 mA
• Supply-Voltage-Max 65 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 30 nA
• Vos-Input-Offset-Voltage 3 mV
• Vcm-Common-Mode-Voltage 5 V to 65 V
• Output-Current-per-Channel 1 mA
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• Maximum-Input-Resistance 5 MOhms
