AD818ARZ

AD818ARZ Overview

Product belongs to the AD818 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: - Versatile Voltage Feedback applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-SOIC 1 is 8. Voltage supply range: 5 V ~ 36 V, ±2.5 V ~ 18 V This product has a 7mA of 200μA. The 130MHz The 500 V/μs. Current-Output-Channel is 50mA The amplifier is of Voltage Feedback Amplifier type. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 7 mA is 92 nA. The AD818AR-EBZ. Maximum supply voltage of 36 V Minimum supply voltage is 5 V Input bias current of 6.6 uA at +/- 5 V The 2 mV at +/- 15 V. The 80 dB. The CMRR-Common-Mode-Rejection-Ratio is 82 dB. 130 MHz is the 3-dB bandwidth of the product. 73.98 dB voltage gain

AD818ARZ Image

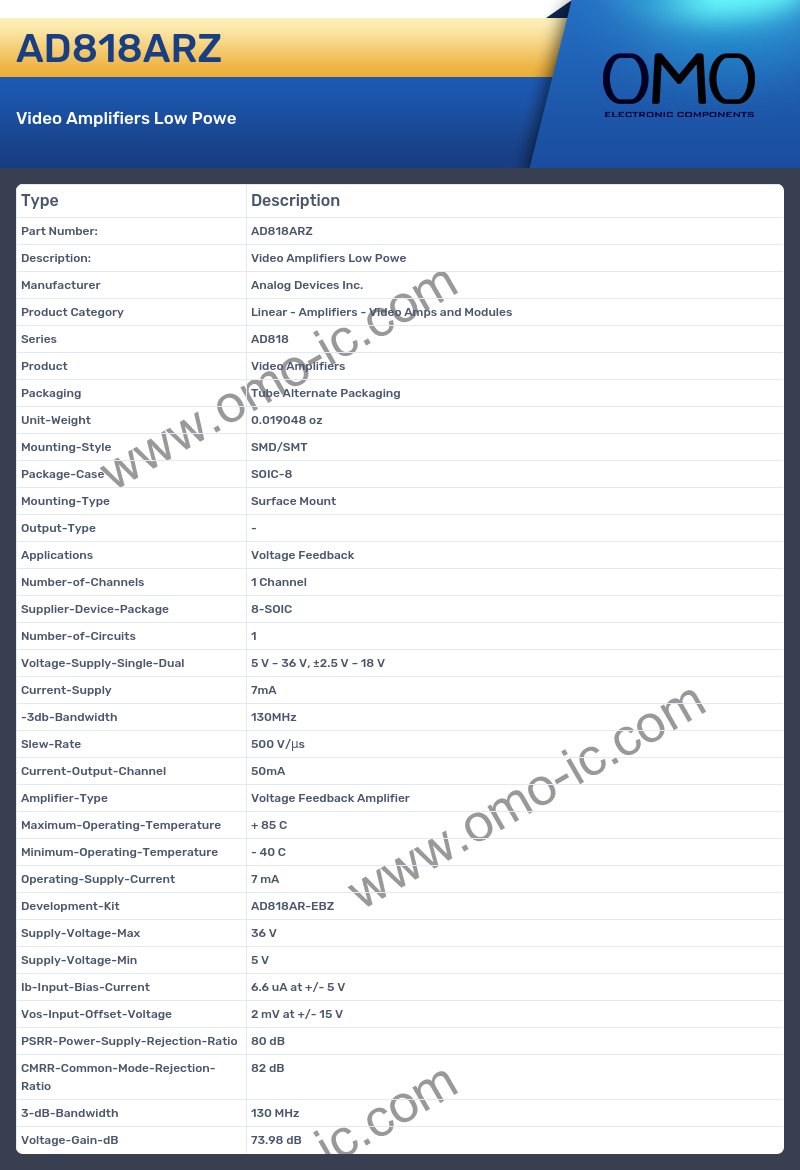

AD818ARZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD818
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type -
• Applications Voltage Feedback
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual 5 V ~ 36 V, ±2.5 V ~ 18 V
• Current-Supply 7mA
• -3db-Bandwidth 130MHz
• Slew-Rate 500 V/μs
• Current-Output-Channel 50mA
• Amplifier-Type Voltage Feedback Amplifier
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 7 mA
• Development-Kit AD818AR-EBZ
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 6.6 uA at +/- 5 V
• Vos-Input-Offset-Voltage 2 mV at +/- 15 V
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• CMRR-Common-Mode-Rejection-Ratio 82 dB
• 3-dB-Bandwidth 130 MHz
• Voltage-Gain-dB 73.98 dB
