AD818ANZ

AD818ANZ Overview

Product belongs to the AD818 series. This product is categorized as Video Amplifiers Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Through Hole mounting type Output-Type: - Versatile Voltage Feedback applications for maximum usability Number of channels: 1 Channel Supplier device package: 8-PDIP 1 is 8. Voltage supply range: 5 V ~ 36 V, ±2.5 V ~ 18 V This product has a 7mA of 200μA. The 130MHz The 500 V/μs. Current-Output-Channel is 50mA The amplifier is of Voltage Feedback Amplifier type. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 7 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 5 V Input bias current of 6.6 uA at +/- 5 V The 2 mV at +/- 15 V. The 80 dB. The CMRR-Common-Mode-Rejection-Ratio is 82 dB. 130 MHz is the 3-dB bandwidth of the product. 73.98 dB voltage gain

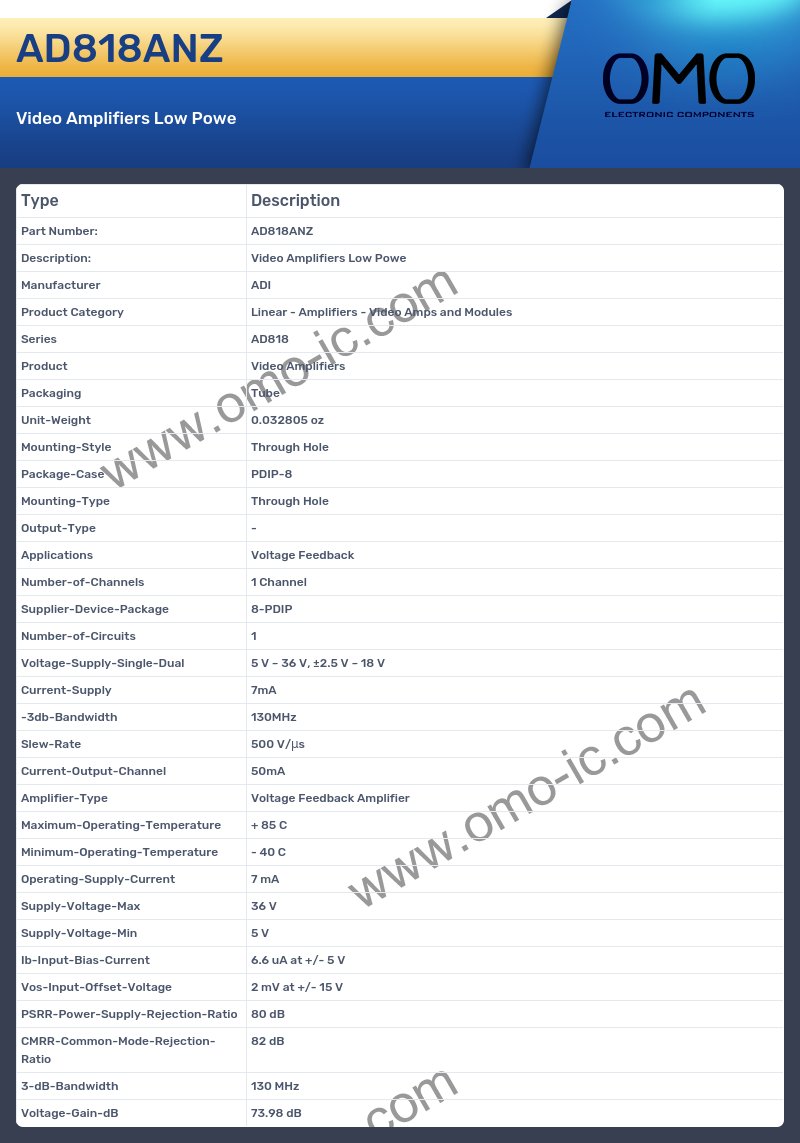

AD818ANZ Image

AD818ANZ Specifications

• Manufacturer ADI
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD818
• Product Video Amplifiers
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Mounting-Type Through Hole
• Output-Type -
• Applications Voltage Feedback
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-PDIP
• Number-of-Circuits 1
• Voltage-Supply-Single-Dual 5 V ~ 36 V, ±2.5 V ~ 18 V
• Current-Supply 7mA
• -3db-Bandwidth 130MHz
• Slew-Rate 500 V/μs
• Current-Output-Channel 50mA
• Amplifier-Type Voltage Feedback Amplifier
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 7 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 5 V
• Ib-Input-Bias-Current 6.6 uA at +/- 5 V
• Vos-Input-Offset-Voltage 2 mV at +/- 15 V
• PSRR-Power-Supply-Rejection-Ratio 80 dB
• CMRR-Common-Mode-Rejection-Ratio 82 dB
• 3-dB-Bandwidth 130 MHz
• Voltage-Gain-dB 73.98 dB
