AD8184ARZ-REEL

AD8184ARZ-REEL Overview

Product belongs to the AD8184 series. This product is categorized as Multiplexers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Multiplexer. Number of channels: 4 Channel Supplier device package: 14-SOICN - is 8. Voltage supply source: Analog and digital Dual Supply Configuration 1 x 4 Circuit type: 1 x 4:1 - maximum on-state resistance Voltage supply range: ±4 V ~ 6 V This product has a - of 200μA. The - 700 MHz bandwidth Power-off control: 52 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum off time: 22 ns The 115 dB of this product is 35 dB.

AD8184ARZ-REEL Image

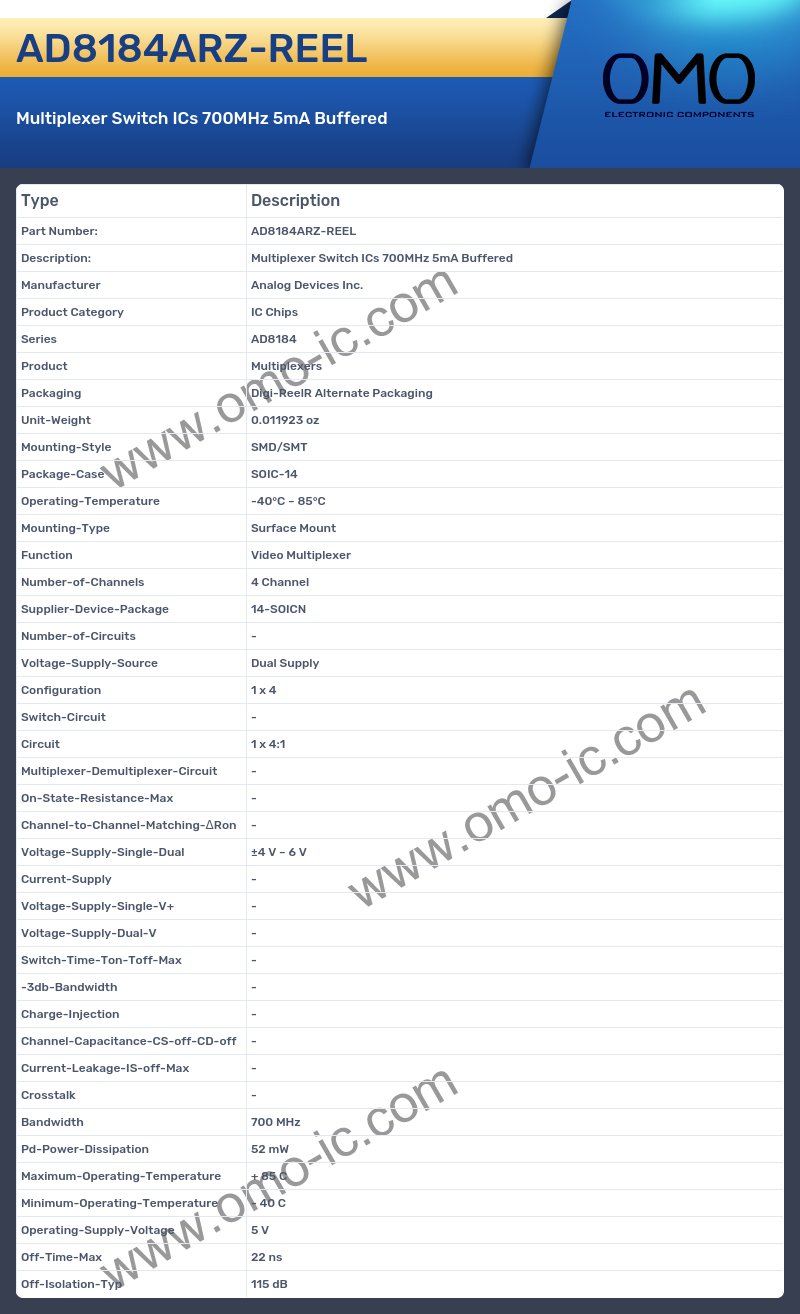

AD8184ARZ-REEL Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD8184
• Product Multiplexers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Multiplexer
• Number-of-Channels 4 Channel
• Supplier-Device-Package 14-SOICN
• Number-of-Circuits -
• Voltage-Supply-Source Dual Supply
• Configuration 1 x 4
• Switch-Circuit -
• Circuit 1 x 4:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max -
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual ±4 V ~ 6 V
• Current-Supply -
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 700 MHz
• Pd-Power-Dissipation 52 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Off-Time-Max 22 ns
• Off-Isolation-Typ 115 dB
