AD8180ANZ

AD8180ANZ Overview

Product belongs to the AD8180 series. This product is categorized as Multiplexers Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: -40°C ~ 85°C Through Hole mounting type Product function is Multiplexer. Number of channels: 2 Channel Supplier device package: 8-PDIP - is 8. Voltage supply source: Analog and digital Dual Supply Configuration 1 x 2 Circuit type: 1 x 2:1 - maximum on-state resistance Voltage supply range: ±4 V ~ 6 V This product has a - of 200μA. The - 930 MHz bandwidth Power-off control: 45 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. Maximum off time: 11 ns The 89 dB of this product is 35 dB.

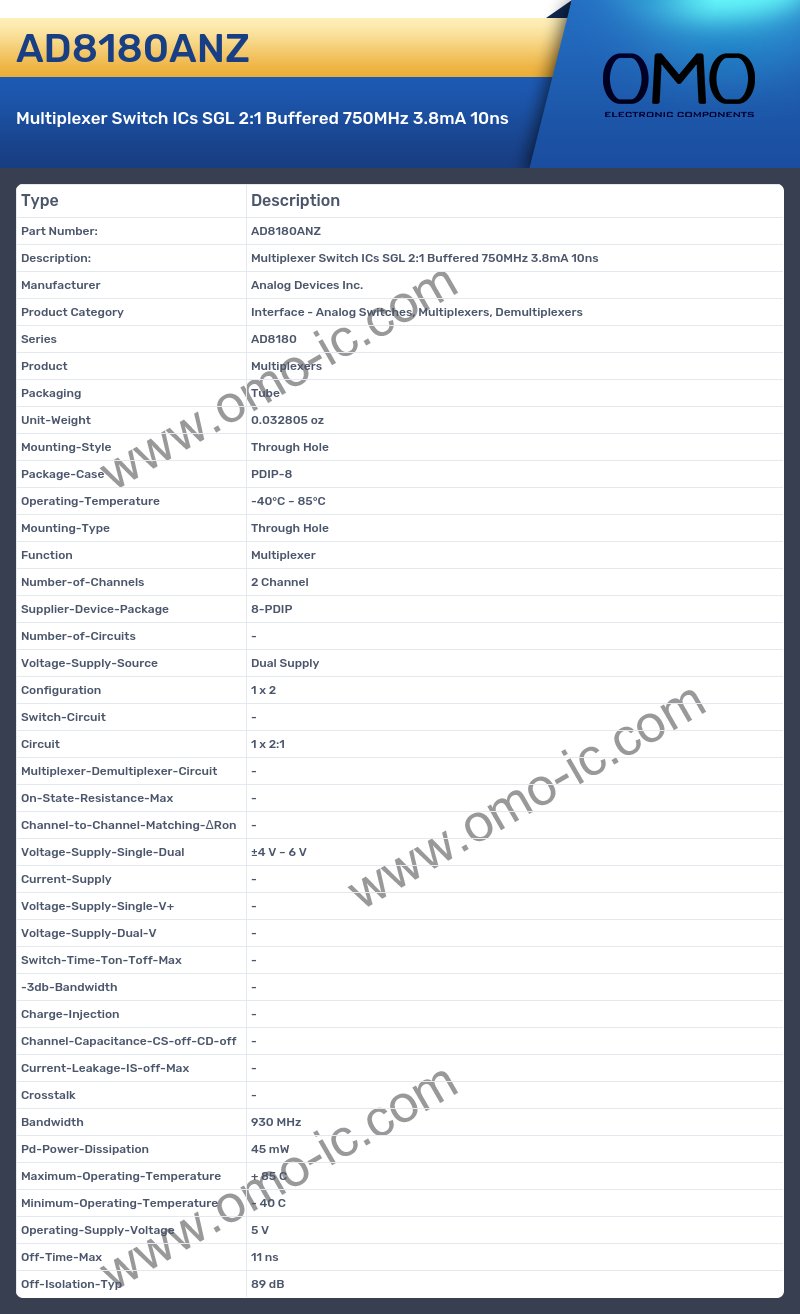

AD8180ANZ Image

AD8180ANZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Interface - Analog Switches, Multiplexers, Demultiplexers
• Series AD8180
• Product Multiplexers
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Through Hole
• Function Multiplexer
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-PDIP
• Number-of-Circuits -
• Voltage-Supply-Source Dual Supply
• Configuration 1 x 2
• Switch-Circuit -
• Circuit 1 x 2:1
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max -
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual ±4 V ~ 6 V
• Current-Supply -
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 930 MHz
• Pd-Power-Dissipation 45 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Off-Time-Max 11 ns
• Off-Isolation-Typ 89 dB
