AD813AR-14 Overview

Product belongs to the AD813 series. This product is categorized as Video Amplifiers Tube is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Bipolar is the technology used. Surface Mount mounting type Output-Type: Rail to Rail Output Versatile Current Feedback applications for maximum usability Number of channels: 3 Channel Supplier device package: 14-SOICN 3 is 8. Voltage supply range: 2.4 V ~ 36 V, ±1.2 V ~ 18 V This product has a 4.5mA of 200μA. The 100MHz The 250 V/μs. Current-Output-Channel is 50mA The amplifier is of Video type. Power-off control: No Shutdown Power-off control: 1 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 5.5 mA is 92 nA. Maximum supply voltage of 36 V Minimum supply voltage is 2.4 V Input bias current of 40 uA The 1.5 mV. The 76 dB. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 54 dB. The 3.5 nV/sqrt Hz of this product is 110 nV/sqrt Hz. 50 MHz is the 3-dB bandwidth of the product. 70 dB voltage gain

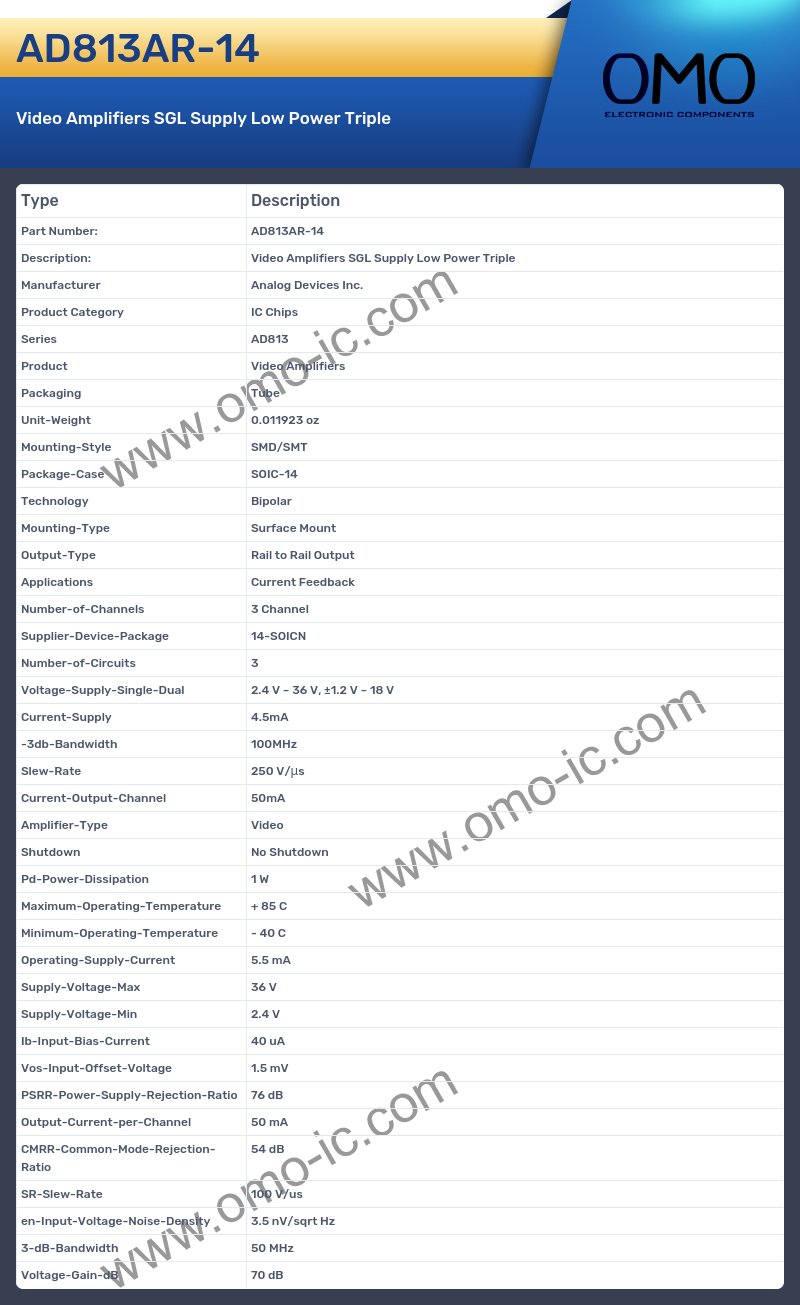

AD813AR-14 Image

AD813AR-14 Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD813
• Product Video Amplifiers
• Packaging Tube
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Technology Bipolar
• Mounting-Type Surface Mount
• Output-Type Rail to Rail Output
• Applications Current Feedback
• Number-of-Channels 3 Channel
• Supplier-Device-Package 14-SOICN
• Number-of-Circuits 3
• Voltage-Supply-Single-Dual 2.4 V ~ 36 V, ±1.2 V ~ 18 V
• Current-Supply 4.5mA
• -3db-Bandwidth 100MHz
• Slew-Rate 250 V/μs
• Current-Output-Channel 50mA
• Amplifier-Type Video
• Shutdown No Shutdown
• Pd-Power-Dissipation 1 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5.5 mA
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 2.4 V
• Ib-Input-Bias-Current 40 uA
• Vos-Input-Offset-Voltage 1.5 mV
• PSRR-Power-Supply-Rejection-Ratio 76 dB
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 54 dB
• SR-Slew-Rate 100 V/us
• en-Input-Voltage-Noise-Density 3.5 nV/sqrt Hz
• 3-dB-Bandwidth 50 MHz
• Voltage-Gain-dB 70 dB
