AD8072JRZ Overview

Product belongs to the AD8072 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 Surface Mount mounting type Output-Type: - Versatile Current Feedback applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-SOIC 2 is 8. Voltage supply range: 5 V ~ 12 V, ±2.5 V ~ 6 V This product has a 3.5mA of 200μA. The 100MHz The 500 V/μs. Current-Output-Channel is 30mA The amplifier is of Current Feedback Amplifier type. Power-off control: 900 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 3.5 mA is 92 nA. The AD8072JR-EBZ. Maximum supply voltage of +/- 6 V Minimum supply voltage is +/- 2.5 V Input bias current of 10 uA at 5 V The 4 mV at 5 V. The 64 dB (Typ). The CMRR-Common-Mode-Rejection-Ratio is 54 dB (Typ). 100 MHz is the 3-dB bandwidth of the product.

AD8072JRZ Image

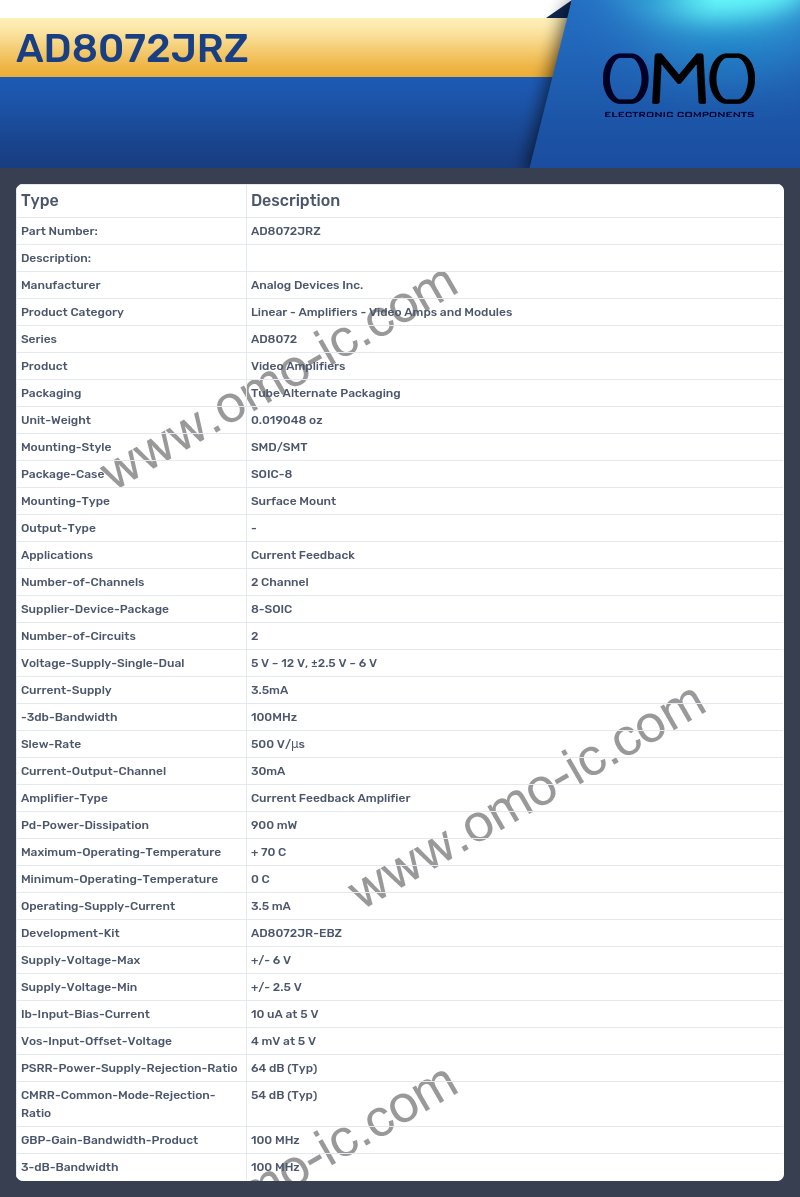

AD8072JRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD8072
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Mounting-Type Surface Mount
• Output-Type -
• Applications Current Feedback
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Number-of-Circuits 2
• Voltage-Supply-Single-Dual 5 V ~ 12 V, ±2.5 V ~ 6 V
• Current-Supply 3.5mA
• -3db-Bandwidth 100MHz
• Slew-Rate 500 V/μs
• Current-Output-Channel 30mA
• Amplifier-Type Current Feedback Amplifier
• Pd-Power-Dissipation 900 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 3.5 mA
• Development-Kit AD8072JR-EBZ
• Supply-Voltage-Max +/- 6 V
• Supply-Voltage-Min +/- 2.5 V
• Ib-Input-Bias-Current 10 uA at 5 V
• Vos-Input-Offset-Voltage 4 mV at 5 V
• PSRR-Power-Supply-Rejection-Ratio 64 dB (Typ)
• CMRR-Common-Mode-Rejection-Ratio 54 dB (Typ)
• GBP-Gain-Bandwidth-Product 100 MHz
• 3-dB-Bandwidth 100 MHz
