AD8023ARZ

AD8023ARZ Overview

Product belongs to the AD8023 series. This product is categorized as Video Amplifiers Tube Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 Surface Mount mounting type Output-Type: - Versatile Current Feedback applications for maximum usability Number of channels: 3 Channel Supplier device package: 14-SOICN 3 is 8. Voltage supply range: 4.2 V ~ 15 V, ±2.1 V ~ 7.5 V This product has a 7mA of 200μA. The 125MHz The 1200 V/μs. Current-Output-Channel is 70mA The amplifier is of Current Feedback Amplifier type. Power-off control: No Shutdown Power-off control: 1 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 30 mA is 92 nA. The AD8023AR-EBZ. Maximum supply voltage of 15 V Minimum supply voltage is 4.2 V Input bias current of 25 uA The 5 mV. The 54 dB. 50 mA The CMRR-Common-Mode-Rejection-Ratio is 50 dB. 125 MHz is the 3-dB bandwidth of the product.

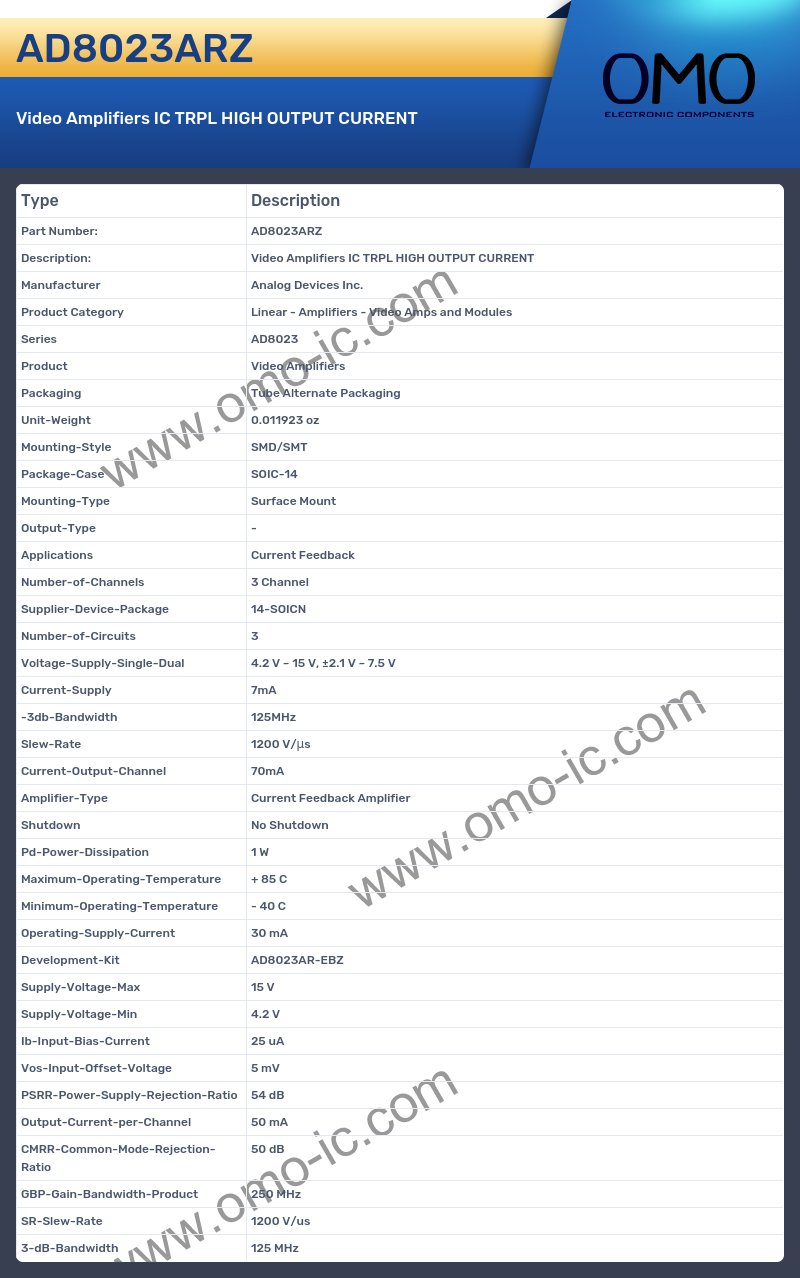

AD8023ARZ Image

AD8023ARZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Amplifiers - Video Amps and Modules
• Series AD8023
• Product Video Amplifiers
• Packaging Tube Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Mounting-Type Surface Mount
• Output-Type -
• Applications Current Feedback
• Number-of-Channels 3 Channel
• Supplier-Device-Package 14-SOICN
• Number-of-Circuits 3
• Voltage-Supply-Single-Dual 4.2 V ~ 15 V, ±2.1 V ~ 7.5 V
• Current-Supply 7mA
• -3db-Bandwidth 125MHz
• Slew-Rate 1200 V/μs
• Current-Output-Channel 70mA
• Amplifier-Type Current Feedback Amplifier
• Shutdown No Shutdown
• Pd-Power-Dissipation 1 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 mA
• Development-Kit AD8023AR-EBZ
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4.2 V
• Ib-Input-Bias-Current 25 uA
• Vos-Input-Offset-Voltage 5 mV
• PSRR-Power-Supply-Rejection-Ratio 54 dB
• Output-Current-per-Channel 50 mA
• CMRR-Common-Mode-Rejection-Ratio 50 dB
• GBP-Gain-Bandwidth-Product 250 MHz
• SR-Slew-Rate 1200 V/us
• 3-dB-Bandwidth 125 MHz
