AD7960BCPZ

AD7960BCPZ Overview

Product belongs to the PulSARR series. This product is categorized as Analog to Digital Converters Type: Precision ADC Tray Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style LFCSP-32 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: LVDS Number of channels: 1 Channel Supplier device package: 32-LFCSP-WQ (5x5) This product's 5M. Data-Interface: LVDS - Serial 18 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 64.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Signal-to-Noise Ratio of 99 dB Number-of-Converters: 1 Converter 5 MS/s Sampling Rate Reference voltage is 4.096 V .

AD7960BCPZ Image

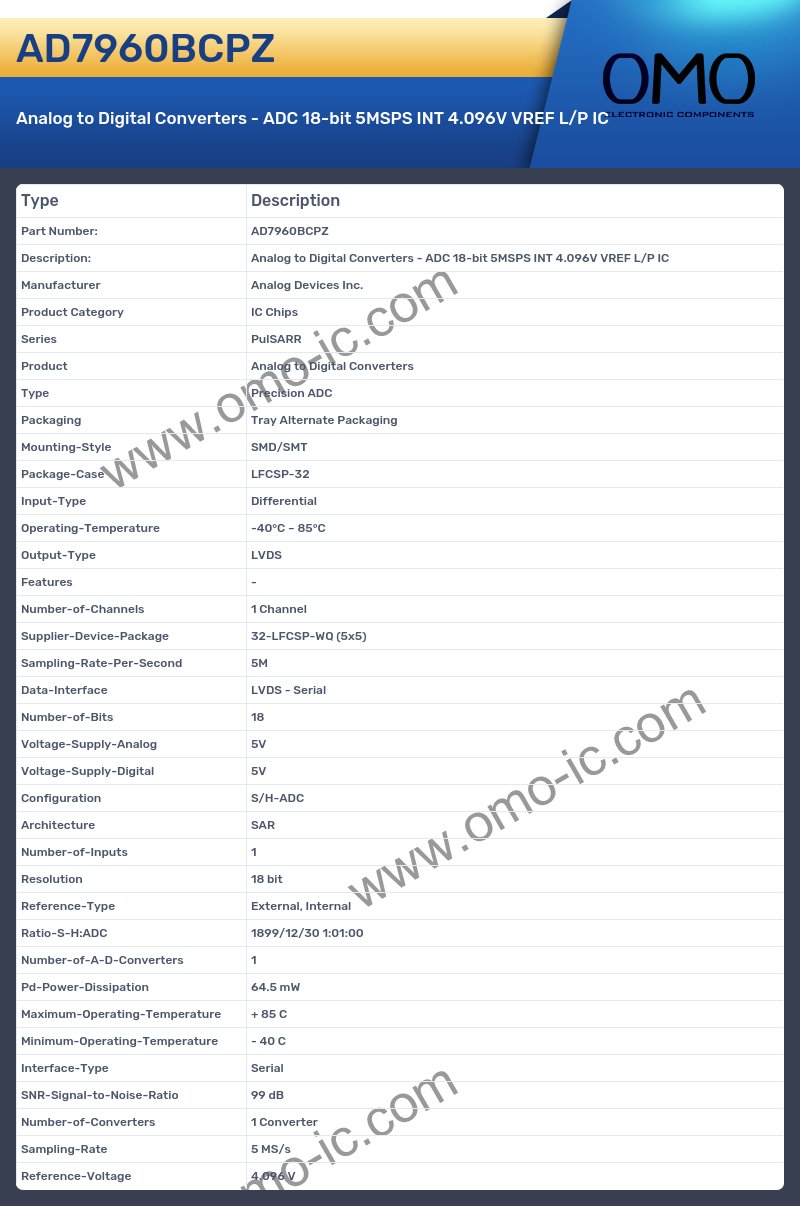

AD7960BCPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series PulSARR
• Product Analog to Digital Converters
• Type Precision ADC
• Packaging Tray Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case LFCSP-32
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Output-Type LVDS
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 32-LFCSP-WQ (5x5)
• Sampling-Rate-Per-Second 5M
• Data-Interface LVDS - Serial
• Number-of-Bits 18
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 18 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 64.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• SNR-Signal-to-Noise-Ratio 99 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 5 MS/s
• Reference-Voltage 4.096 V
