AD7946BCPZRL

AD7946BCPZRL Overview

Product belongs to the PulSARR series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product 10-WFDFN Exposed Pad, CSP The Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Supplier device package: 10-LFCSP-WD (3x3) This product's 500k. Data-Interface: SPI, DSP 14 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units

AD7946BCPZRL Image

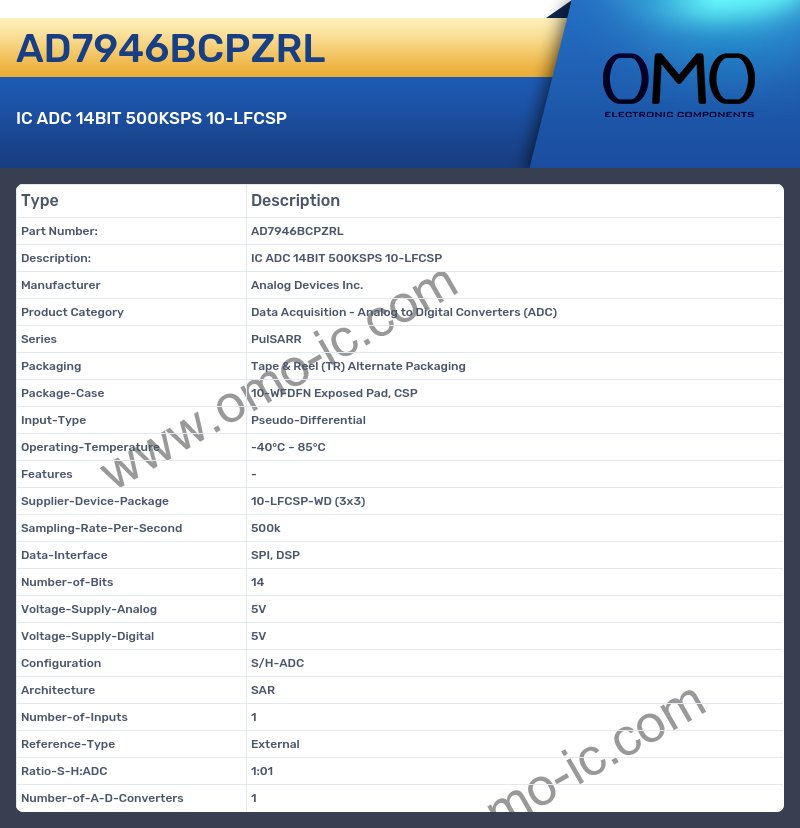

AD7946BCPZRL Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series PulSARR
• Packaging Tape & Reel (TR) Alternate Packaging
• Package-Case 10-WFDFN Exposed Pad, CSP
• Input-Type Pseudo-Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Supplier-Device-Package 10-LFCSP-WD (3x3)
• Sampling-Rate-Per-Second 500k
• Data-Interface SPI, DSP
• Number-of-Bits 14
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Reference-Type External
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
