AD7923BRUZ

AD7923BRUZ Overview

Product belongs to the AD7923 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 4 Channel Supplier device package: 16-TSSOP This product's 200k. Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 7.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 70 dB The +/- 1.5 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 200 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1.5 LSB

AD7923BRUZ Image

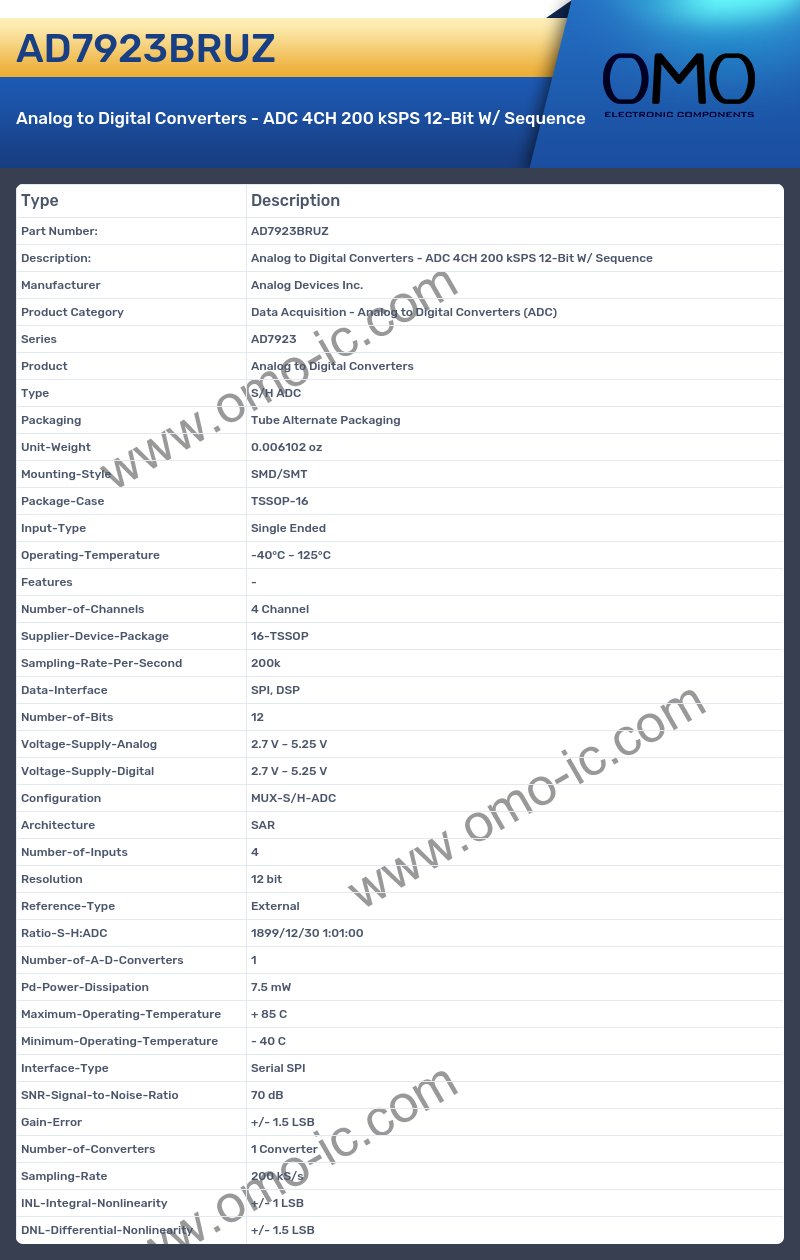

AD7923BRUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7923
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 4 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 200k
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs 4
• Resolution 12 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 7.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 70 dB
• Gain-Error +/- 1.5 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 200 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1.5 LSB
