AD790JN

AD790JN Overview

Product belongs to the AD790 series. This product is categorized as Analog Comparators Type: with Latch Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 70°C Through Hole mounting type Output-Type: CMOS, TTL Number of channels: 1 Channel Supplier device package: 8-PDIP Voltage supply range: 4.5 V ~ 7 V, ±2.25 V ~ 16.5 V 1 element 10mA maximum quiescent current. Maximum propagation delay: 50ns Hysteresis value of 500μV 45 ns response time Power-off control: No Shutdown Power-off control: 242 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 12 mA is 92 nA. Maximum supply voltage of 7 V Minimum supply voltage is 4.5 V Precision with Latch comparator type Input bias current of 5 uA The 1.5 mV. 45 ns is 23 microseconds. The 90 dB. 6.4 mA The CMRR-Common-Mode-Rejection-Ratio is 95 dB.

AD790JN Image

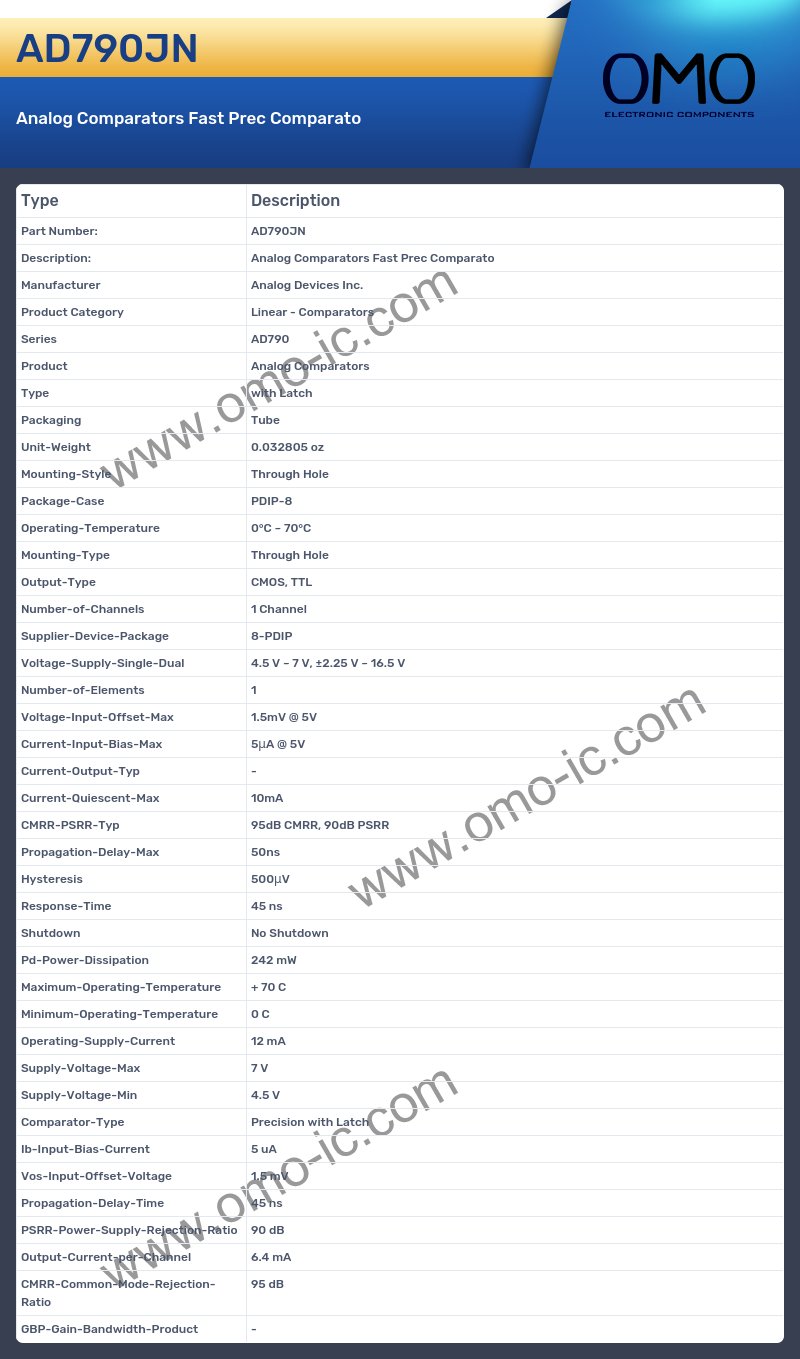

AD790JN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Linear - Comparators
• Series AD790
• Product Analog Comparators
• Type with Latch
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Through Hole
• Output-Type CMOS, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-PDIP
• Voltage-Supply-Single-Dual 4.5 V ~ 7 V, ±2.25 V ~ 16.5 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max 1.5mV @ 5V
• Current-Input-Bias-Max 5μA @ 5V
• Current-Output-Typ -
• Current-Quiescent-Max 10mA
• CMRR-PSRR-Typ 95dB CMRR, 90dB PSRR
• Propagation-Delay-Max 50ns
• Hysteresis 500μV
• Response-Time 45 ns
• Shutdown No Shutdown
• Pd-Power-Dissipation 242 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 12 mA
• Supply-Voltage-Max 7 V
• Supply-Voltage-Min 4.5 V
• Comparator-Type Precision with Latch
• Ib-Input-Bias-Current 5 uA
• Vos-Input-Offset-Voltage 1.5 mV
• Propagation-Delay-Time 45 ns
• PSRR-Power-Supply-Rejection-Ratio 90 dB
• Output-Current-per-Channel 6.4 mA
• CMRR-Common-Mode-Rejection-Ratio 95 dB
• GBP-Gain-Bandwidth-Product -
