AD7892AR-2

AD7892AR-2 Overview

Product belongs to the AD7892 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Weight of 0.038731 oz SMD/SMT Mounting-Style SOIC-24 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Output-Type: CMOS/TTL Number of channels: 1 Channel Supplier device package: 24-SOIC This product's 500k. Data-Interface: SPI, Parallel 12 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 90 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 60 mW. Parallel Serial 3-Wire interface type Signal-to-Noise Ratio of 70 dB The +/- 5 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 600 kS/s Sampling Rate Integral Nonlinearity: +/- 1.5 LSB Differential nonlinearity: +/- 1 LSB

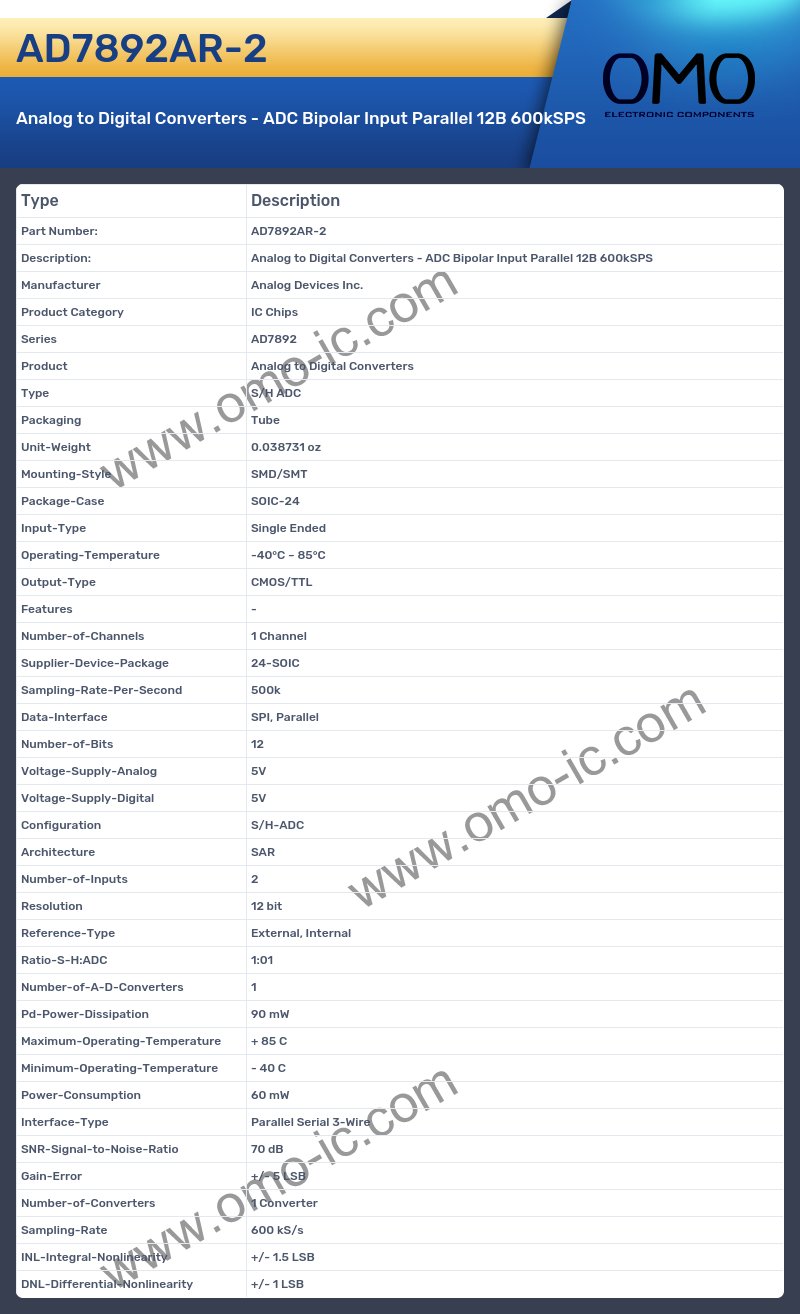

AD7892AR-2 Image

AD7892AR-2 Specifications

• Manufacturer Analog Devices Inc.
• Product Category IC Chips
• Series AD7892
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Unit-Weight 0.038731 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Output-Type CMOS/TTL
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 24-SOIC
• Sampling-Rate-Per-Second 500k
• Data-Interface SPI, Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 2
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 90 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 60 mW
• Interface-Type Parallel Serial 3-Wire
• SNR-Signal-to-Noise-Ratio 70 dB
• Gain-Error +/- 5 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 600 kS/s
• INL-Integral-Nonlinearity +/- 1.5 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
