AD7887AR

AD7887AR Overview

Product belongs to the AD7887 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SMD/SMT Mounting-Style SOIC-8 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C Number of channels: 2 Channel Supplier device package: 8-SOIC This product's 125k. Data-Interface: SPI, DSP 12 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-S/H-ADC The architecture of this product is SAR . External, Internal is the reference type. 1 units Power-off control: 3.5 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 71 dB The EVAL-AD7887CBZ. The +/- 2 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 125 kS/s Sampling Rate Integral Nonlinearity: +/- 2 LSB Differential nonlinearity: +/- 2 LSB

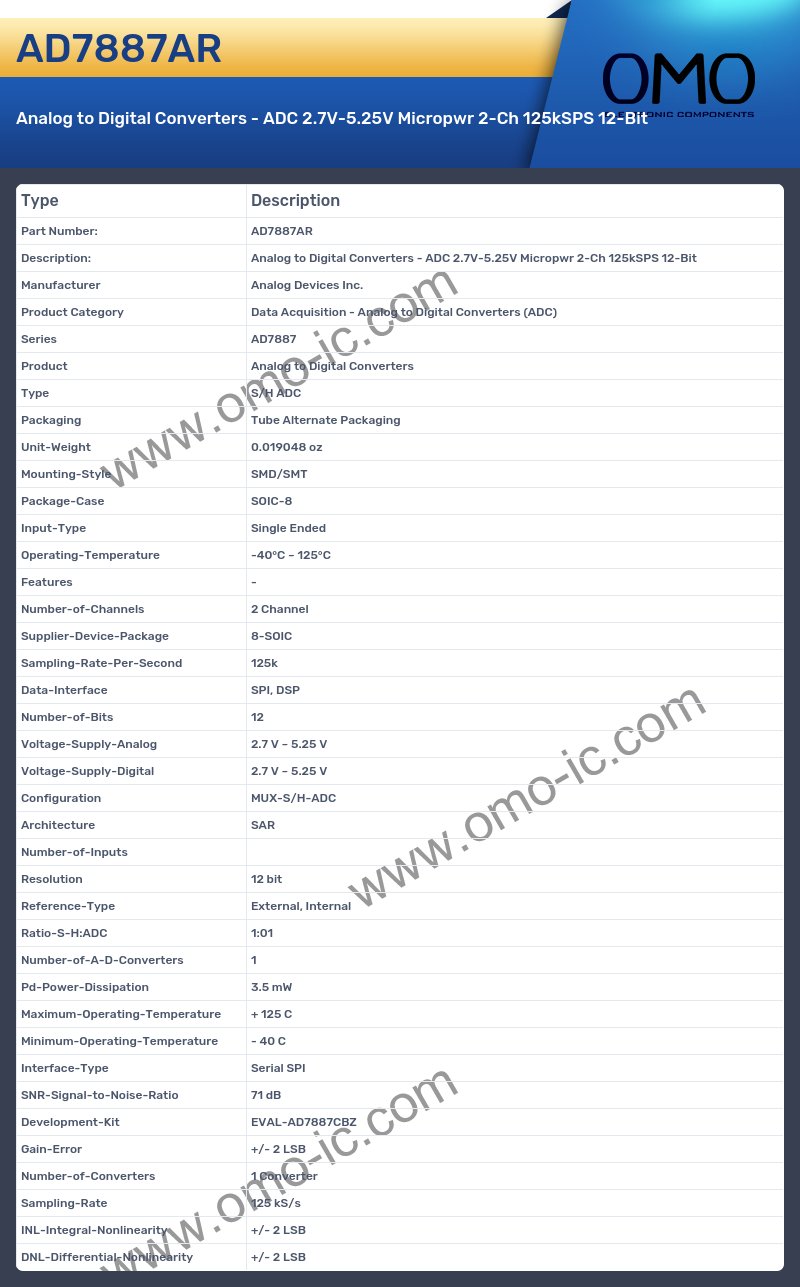

AD7887AR Image

AD7887AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7887
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 125°C
• Features -
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SOIC
• Sampling-Rate-Per-Second 125k
• Data-Interface SPI, DSP
• Number-of-Bits 12
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-S/H-ADC
• Architecture SAR
• Number-of-Inputs
• Resolution 12 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 3.5 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 71 dB
• Development-Kit EVAL-AD7887CBZ
• Gain-Error +/- 2 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 125 kS/s
• INL-Integral-Nonlinearity +/- 2 LSB
• DNL-Differential-Nonlinearity +/- 2 LSB
