AD7884AQ

AD7884AQ Overview

Product belongs to the AD7884 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Through Hole Mounting-Style CDIP-40 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 40-Cerdip This product's 166k. Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±3V, ±5V. The Voltage Supply Digital for this product is ±5V. Configuration S/H-ADC The architecture of this product is Flash . External is the reference type. 1 units Power-off control: 325 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 250 mW. Parallel interface type Signal-to-Noise Ratio of 82 dB The +/- 0.03 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 166 kS/s Sampling Rate Integral Nonlinearity: 0.003 %FSR

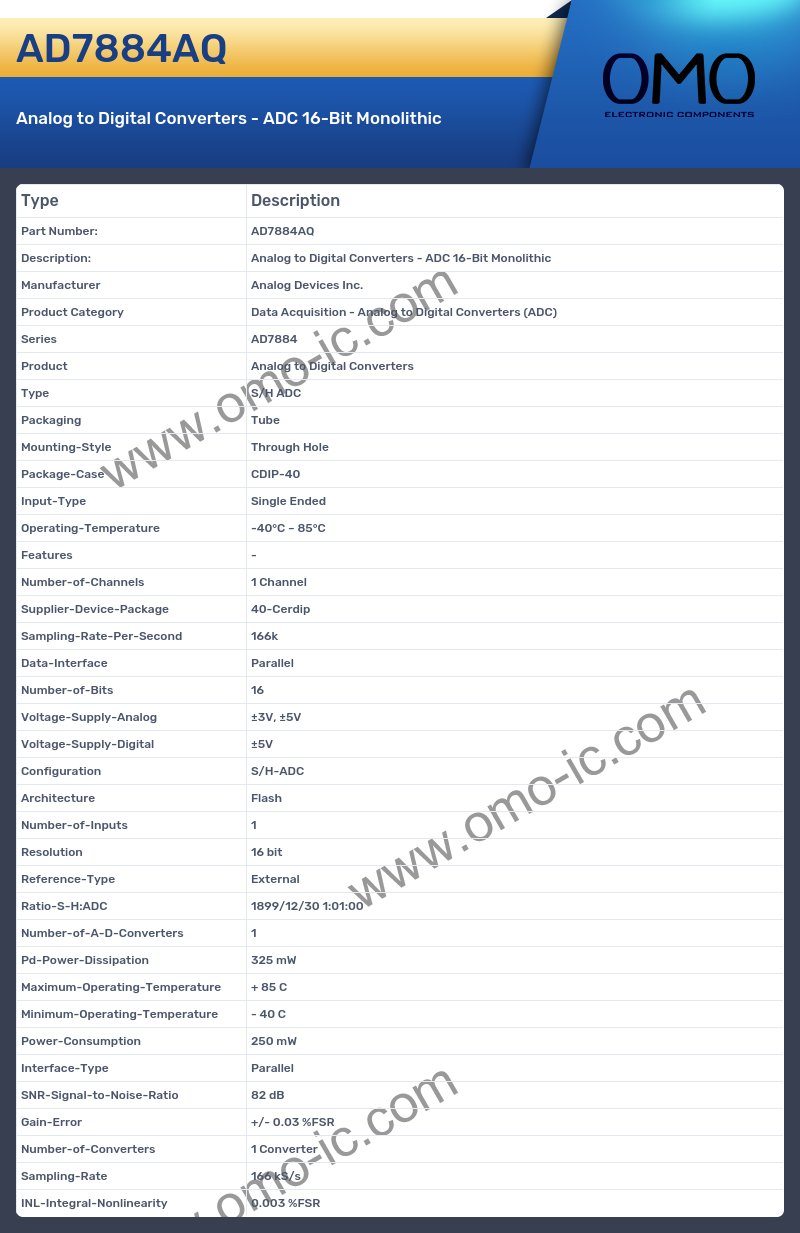

AD7884AQ Image

AD7884AQ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7884
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-40
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 40-Cerdip
• Sampling-Rate-Per-Second 166k
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±3V, ±5V
• Voltage-Supply-Digital ±5V
• Configuration S/H-ADC
• Architecture Flash
• Number-of-Inputs 1
• Resolution 16 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 325 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 250 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 82 dB
• Gain-Error +/- 0.03 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 166 kS/s
• INL-Integral-Nonlinearity 0.003 %FSR
