AD7846JPZ

AD7846JPZ Overview

Product belongs to the AD7846 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: 0°C ~ 70°C Output-Type: Voltage - Buffered Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 1 The 9μs is an impressive 15 us. No Differential-Output

AD7846JPZ Image

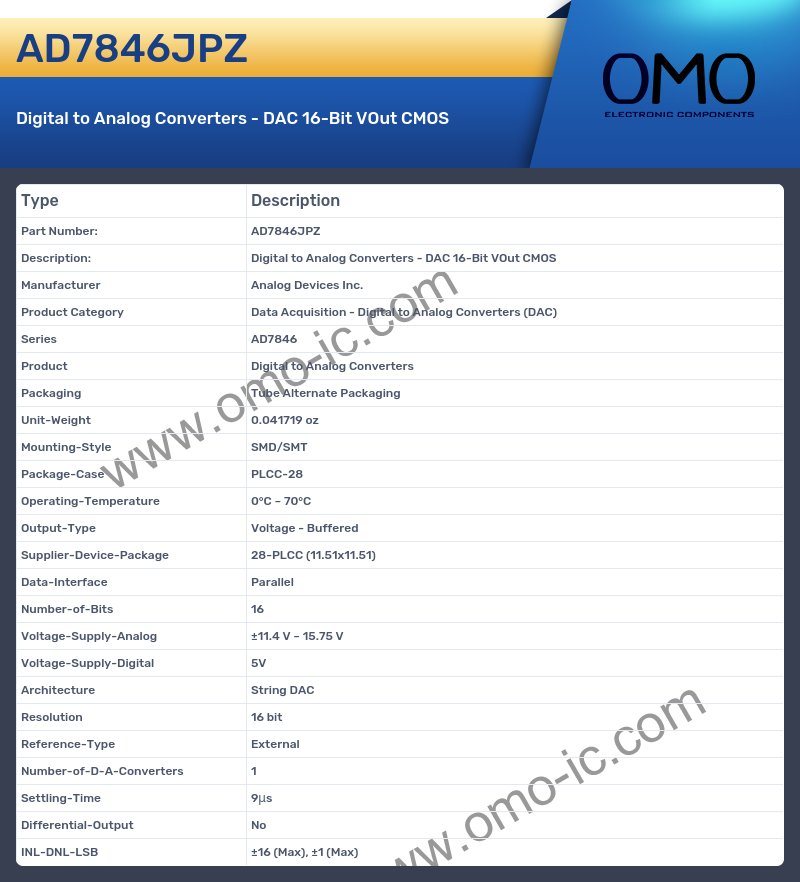

AD7846JPZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7846
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature 0°C ~ 70°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 15.75 V
• Voltage-Supply-Digital 5V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 9μs
• Differential-Output No
• INL-DNL-LSB ±16 (Max), ±1 (Max)
