AD7846BP Overview

Product belongs to the AD7846 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.041719 oz SMD/SMT Mounting-Style PLCC-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 28-PLCC (11.51x11.51) Data-Interface: Parallel 16 bits The Voltage-Supply-Analog is ±11.4 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is String DAC . External is the reference type. Number of D-A converters: 1 The 9μs is an impressive 15 us. No Differential-Output

AD7846BP Image

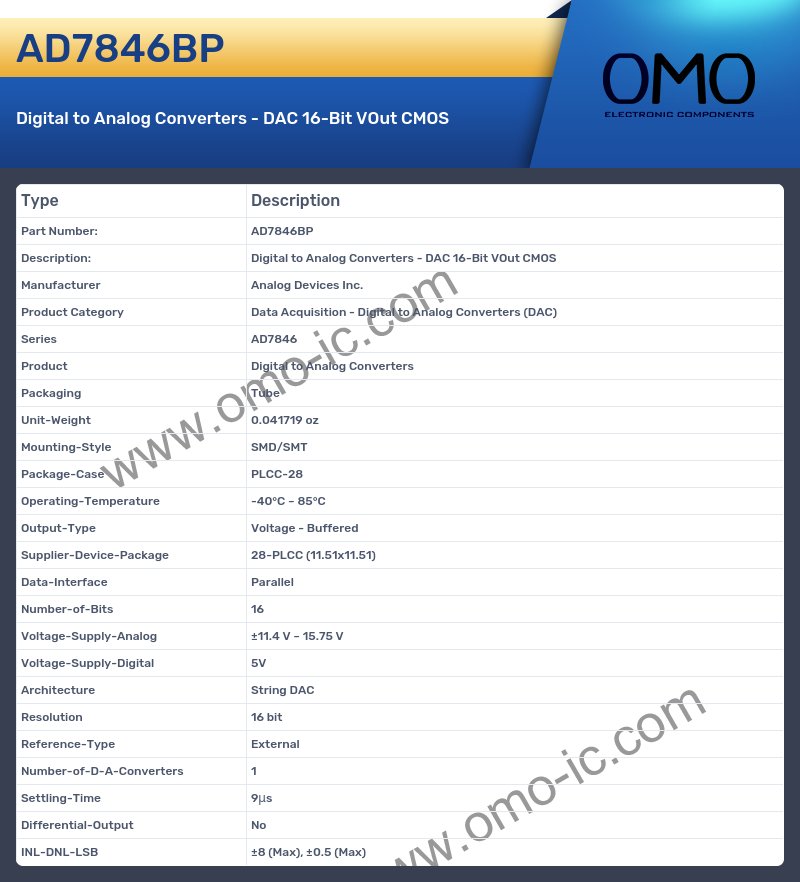

AD7846BP Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7846
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.041719 oz
• Mounting-Style SMD/SMT
• Package-Case PLCC-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 28-PLCC (11.51x11.51)
• Data-Interface Parallel
• Number-of-Bits 16
• Voltage-Supply-Analog ±11.4 V ~ 15.75 V
• Voltage-Supply-Digital 5V
• Architecture String DAC
• Resolution 16 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 9μs
• Differential-Output No
• INL-DNL-LSB ±8 (Max), ±0.5 (Max)
