AD7845SQ

AD7845SQ Overview

Product belongs to the AD7845 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Through Hole Mounting-Style CDIP-24 Operational temperature range: -55°C ~ 125°C Output-Type: Voltage - Buffered Supplier device package: 24-CDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 5μs is an impressive 15 us. No Differential-Output

AD7845SQ Image

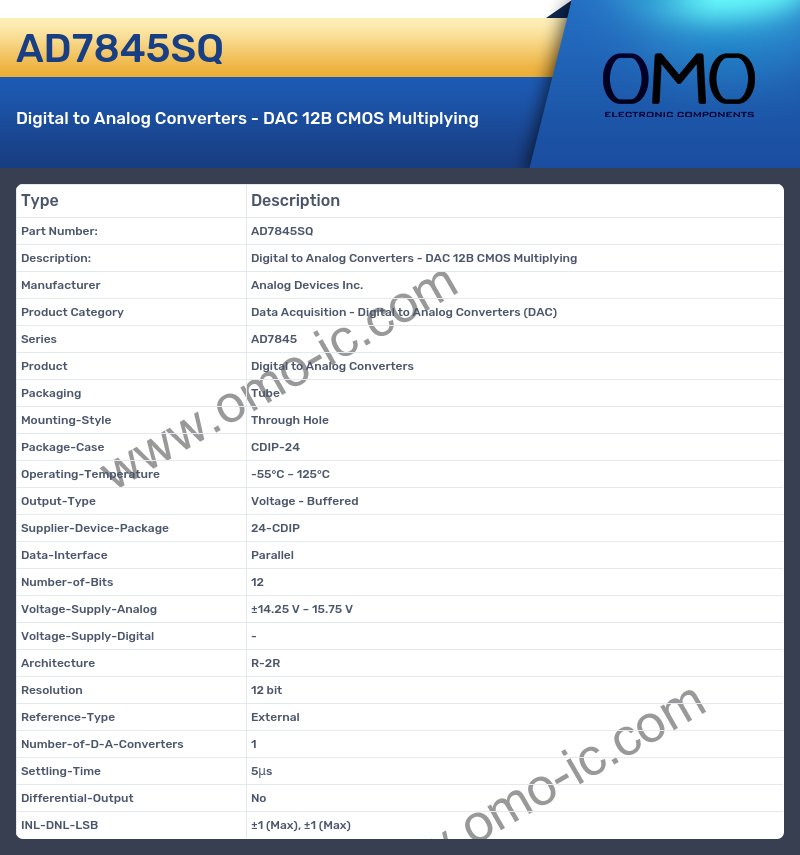

AD7845SQ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7845
• Product Digital to Analog Converters
• Packaging Tube
• Mounting-Style Through Hole
• Package-Case CDIP-24
• Operating-Temperature -55°C ~ 125°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 24-CDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 5μs
• Differential-Output No
• INL-DNL-LSB ±1 (Max), ±1 (Max)
