AD7845BRZ

AD7845BRZ Overview

Product belongs to the AD7845 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.038731 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 24-SOIC W Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 1 The 5μs is an impressive 15 us. No Differential-Output

AD7845BRZ Image

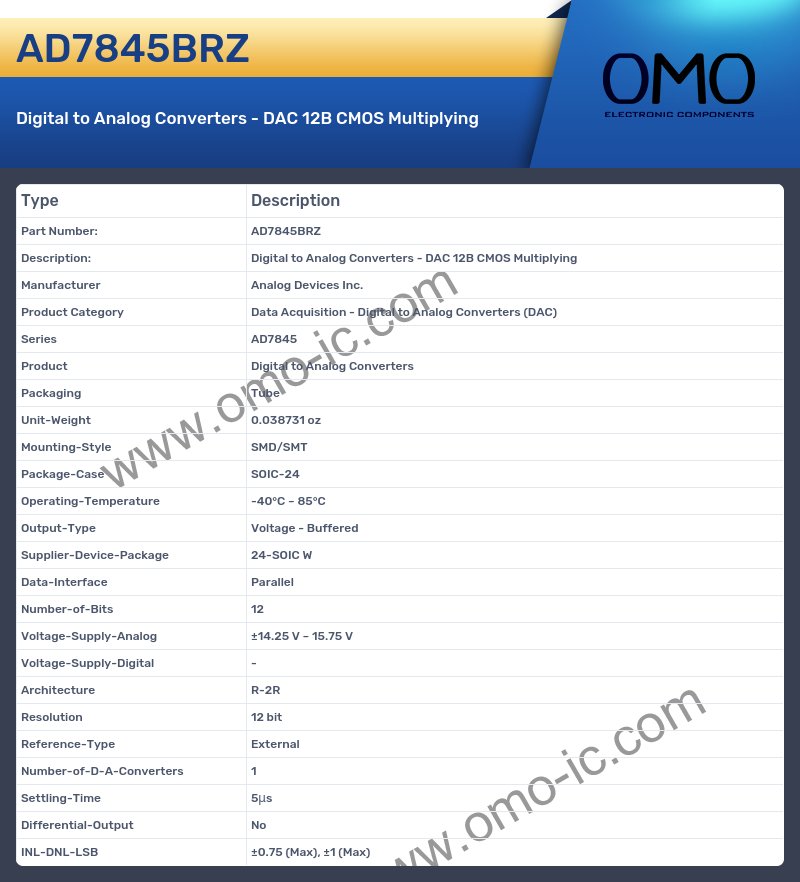

AD7845BRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7845
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.038731 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 24-SOIC W
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 1
• Settling-Time 5μs
• Differential-Output No
• INL-DNL-LSB ±0.75 (Max), ±1 (Max)
