AD7837BN Overview

Product belongs to the AD7837 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Supplier device package: 24-PDIP Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is -. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 2 The 5μs is an impressive 15 us. Yes Differential-Output

AD7837BN Image

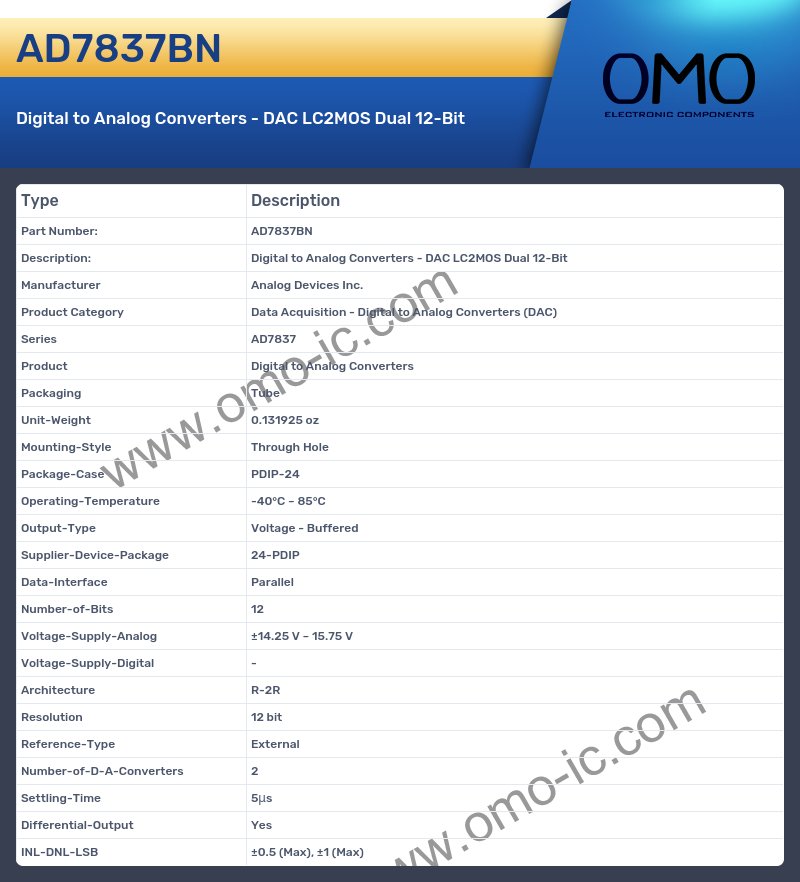

AD7837BN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7837
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Supplier-Device-Package 24-PDIP
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital -
• Architecture R-2R
• Resolution 12 bit
• Reference-Type External
• Number-of-D-A-Converters 2
• Settling-Time 5μs
• Differential-Output Yes
• INL-DNL-LSB ±0.5 (Max), ±1 (Max)
