AD7834AN

AD7834AN Overview

Product belongs to the AD7834 series. This product is categorized as Digital to Analog Converters Tube is the packaging method for this product Weight of 0.147798 oz Through Hole Mounting-Style PDIP-28 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 4 Channel Supplier device package: 28-PDIP Data-Interface: SPI 14 bits The Voltage-Supply-Analog is ±11.4 V ~ 12.6 V, ±14.25 V ~ 15.75 V. The Voltage Supply Digital for this product is 5V. The architecture of this product is R-2R . External is the reference type. Number of D-A converters: 4 The 10μs (Typ) is an impressive 15 us. No Differential-Output Power-off control: 465 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Maximum supply voltage of 15.75 V Minimum supply voltage is 14.25 V Number-of-Converters: 4 Converter 100 kS/s Sampling Rate

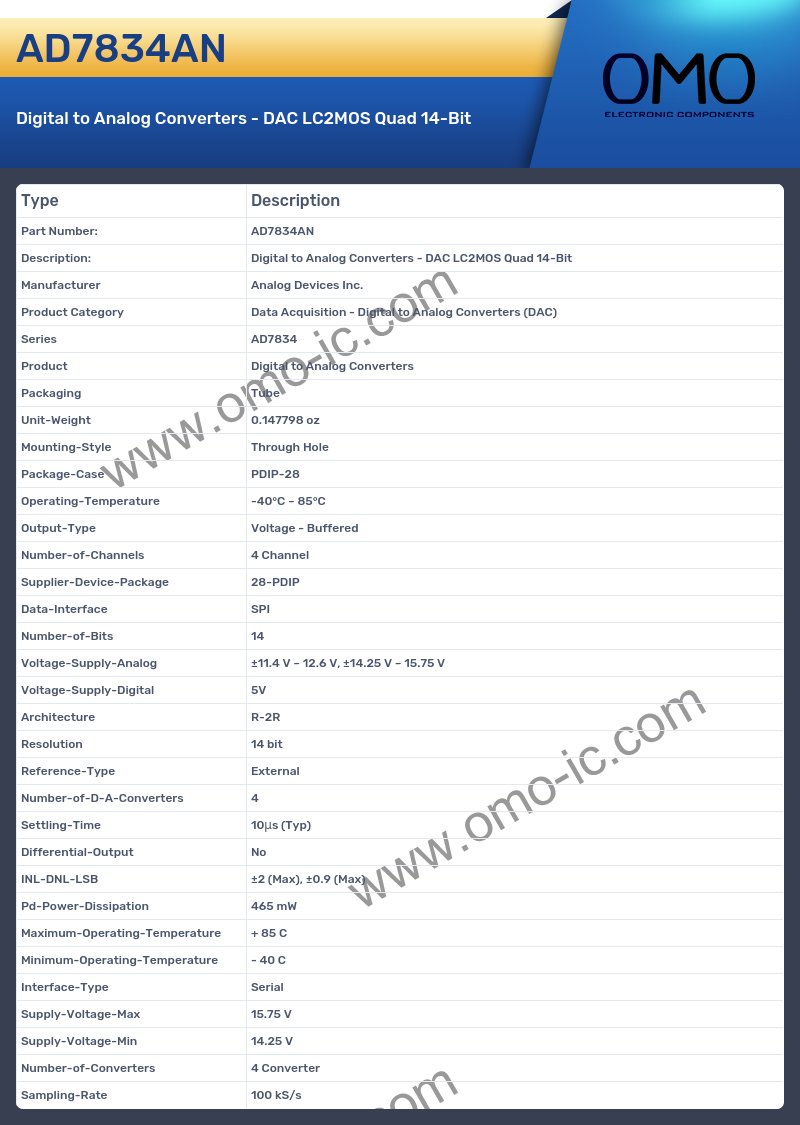

AD7834AN Image

AD7834AN Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7834
• Product Digital to Analog Converters
• Packaging Tube
• Unit-Weight 0.147798 oz
• Mounting-Style Through Hole
• Package-Case PDIP-28
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 4 Channel
• Supplier-Device-Package 28-PDIP
• Data-Interface SPI
• Number-of-Bits 14
• Voltage-Supply-Analog ±11.4 V ~ 12.6 V, ±14.25 V ~ 15.75 V
• Voltage-Supply-Digital 5V
• Architecture R-2R
• Resolution 14 bit
• Reference-Type External
• Number-of-D-A-Converters 4
• Settling-Time 10μs (Typ)
• Differential-Output No
• INL-DNL-LSB ±2 (Max), ±0.9 (Max)
• Pd-Power-Dissipation 465 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Supply-Voltage-Max 15.75 V
• Supply-Voltage-Min 14.25 V
• Number-of-Converters 4 Converter
• Sampling-Rate 100 kS/s
