AD7829BRU

AD7829BRU Overview

Product belongs to the AD7829 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.014215 oz SMD/SMT Mounting-Style TSSOP-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 8 Channel Supplier device package: 28-TSSOP This product's 2M. Data-Interface: Parallel 8 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.3 V, 5V. Configuration MUX-S/H-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 36 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 24 mW. Parallel interface type Signal-to-Noise Ratio of 48 dB The +/- 2 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 2 MS/s Sampling Rate Integral Nonlinearity: +/- 0.75 LSB Differential nonlinearity: +/- 0.75 LSB

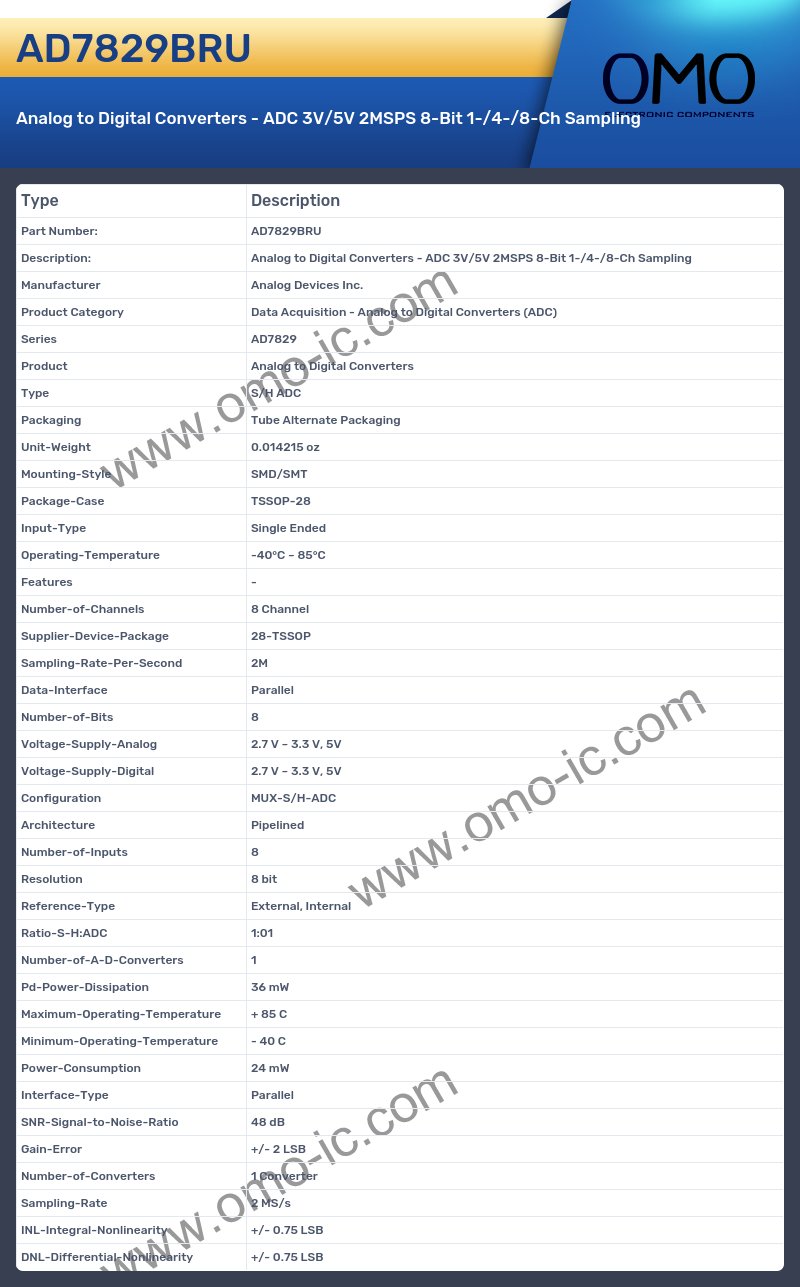

AD7829BRU Image

AD7829BRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7829
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.014215 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 8 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 2M
• Data-Interface Parallel
• Number-of-Bits 8
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.3 V, 5V
• Configuration MUX-S/H-ADC
• Architecture Pipelined
• Number-of-Inputs 8
• Resolution 8 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 36 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 24 mW
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 48 dB
• Gain-Error +/- 2 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 2 MS/s
• INL-Integral-Nonlinearity +/- 0.75 LSB
• DNL-Differential-Nonlinearity +/- 0.75 LSB
