AD7817SR

AD7817SR Overview

Product belongs to the AD7817 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube is the packaging method for this product Weight of 0.023492 oz SMD/SMT Mounting-Style SOIC-16 The Single-Ended for this product is CMOS/TTL. Operational temperature range: -55°C ~ 125°C Output-Type: SPI Number of channels: 5 Channel Voltage Supply Range: 2.7 V ~ 5.5 V Supplier device package: 16-SOIC The architecture of this product is SAR . Digital, Local External Internal is the reference type. Operating temperature: 25°C (-40°C ~ 85°C) Operating temperature: -40°C ~ 85°C Temperature accuracy: ±2.25°C (±6°C) Power-off control: 450 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type The - 10 LSB/20 LSB of this product is 0.2%. Number-of-Converters: 1 Converter 100 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Reference voltage is 2.5 V . Differential nonlinearity: +/- 1 LSB

AD7817SR Image

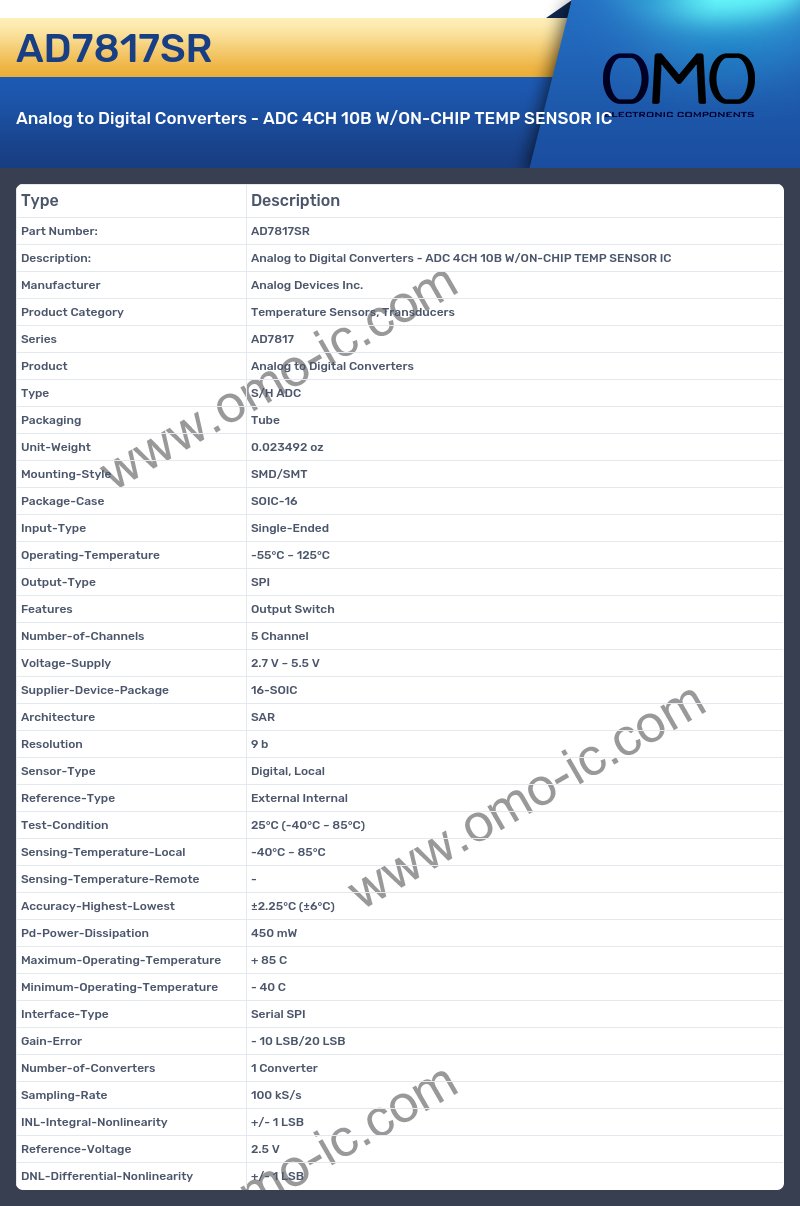

AD7817SR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Temperature Sensors, Transducers
• Series AD7817
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube
• Unit-Weight 0.023492 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Input-Type Single-Ended
• Operating-Temperature -55°C ~ 125°C
• Output-Type SPI
• Features Output Switch
• Number-of-Channels 5 Channel
• Voltage-Supply 2.7 V ~ 5.5 V
• Supplier-Device-Package 16-SOIC
• Architecture SAR
• Resolution 9 b
• Sensor-Type Digital, Local
• Reference-Type External Internal
• Test-Condition 25°C (-40°C ~ 85°C)
• Sensing-Temperature-Local -40°C ~ 85°C
• Sensing-Temperature-Remote -
• Accuracy-Highest-Lowest ±2.25°C (±6°C)
• Pd-Power-Dissipation 450 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Gain-Error - 10 LSB/20 LSB
• Number-of-Converters 1 Converter
• Sampling-Rate 100 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• Reference-Voltage 2.5 V
• DNL-Differential-Nonlinearity +/- 1 LSB
