AD780ARZ

AD780ARZ Overview

Product belongs to the AD780 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.019048 oz SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Programmable Supplier device package: 8-SOIC Tolerance of ±0.2%, ±0.17% 4 V ~ 36 V voltage input This product has a 1mA of 200μA. Series, Shunt is the reference type. Minimum fixed output voltage is ±2.5V, ±3V . 7ppm/°C is 30 parts per million per degree Celsius. 4μVp-p of noise in 0#1Hz-to-10Hz range Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 2.5 V Input Voltage Range: 36 V Initial accuracy: 0.04 % Maximum shunt current of 10 mA

AD780ARZ Image

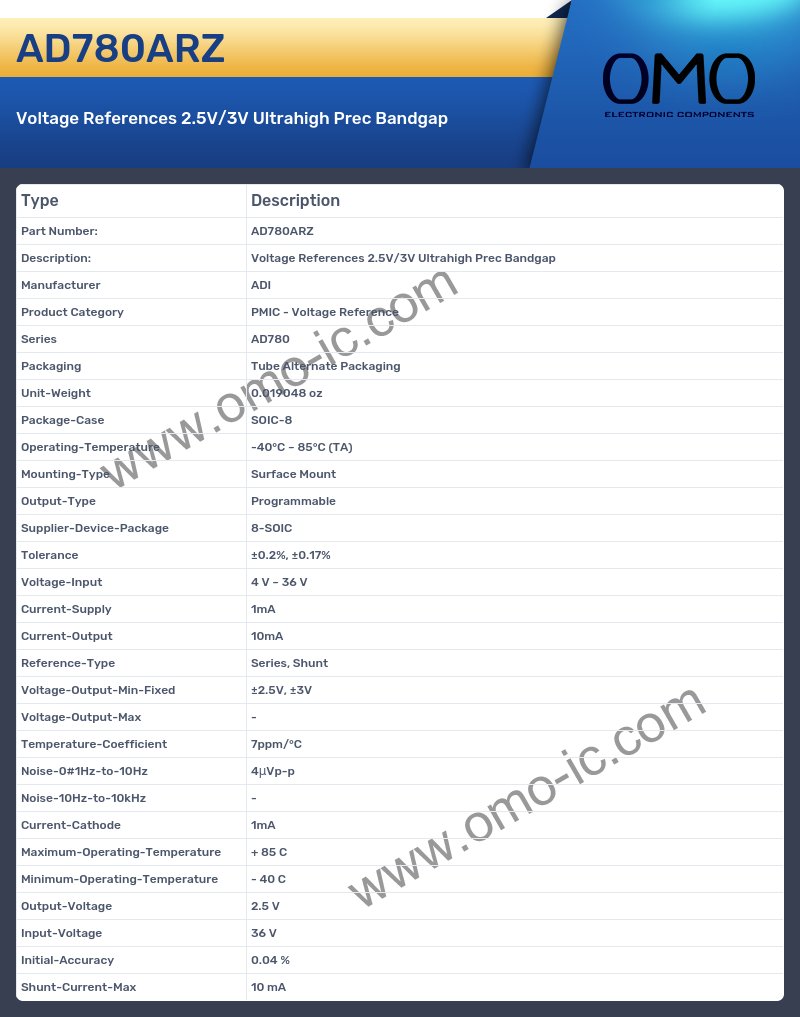

AD780ARZ Specifications

• Manufacturer ADI
• Product Category PMIC - Voltage Reference
• Series AD780
• Packaging Tube Alternate Packaging
• Unit-Weight 0.019048 oz
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Programmable
• Supplier-Device-Package 8-SOIC
• Tolerance ±0.2%, ±0.17%
• Voltage-Input 4 V ~ 36 V
• Current-Supply 1mA
• Current-Output 10mA
• Reference-Type Series, Shunt
• Voltage-Output-Min-Fixed ±2.5V, ±3V
• Voltage-Output-Max -
• Temperature-Coefficient 7ppm/°C
• Noise-0#1Hz-to-10Hz 4μVp-p
• Noise-10Hz-to-10kHz -
• Current-Cathode 1mA
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Input-Voltage 36 V
• Initial-Accuracy 0.04 %
• Shunt-Current-Max 10 mA
