AD7808BRZ

AD7808BRZ Overview

Product belongs to the AD7808 series. This product is categorized as Digital to Analog Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.038731 oz SMD/SMT Mounting-Style SOIC-24 Operational temperature range: -40°C ~ 85°C Output-Type: Voltage - Buffered Number of channels: 8 Channel Supplier device package: 24-SOIC W Data-Interface: SPI 10 bits The Voltage-Supply-Analog is 3 V ~ 5.5 V. The Voltage Supply Digital for this product is 3 V ~ 5.5 V. The architecture of this product is - . External, Internal is the reference type. Number of D-A converters: 8 The 4μs is an impressive 15 us. No Differential-Output Power-off control: 99 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial interface type Maximum supply voltage of 5.5 V Minimum supply voltage is 3 V Number-of-Converters: 8 Converter 667 kS/s Sampling Rate

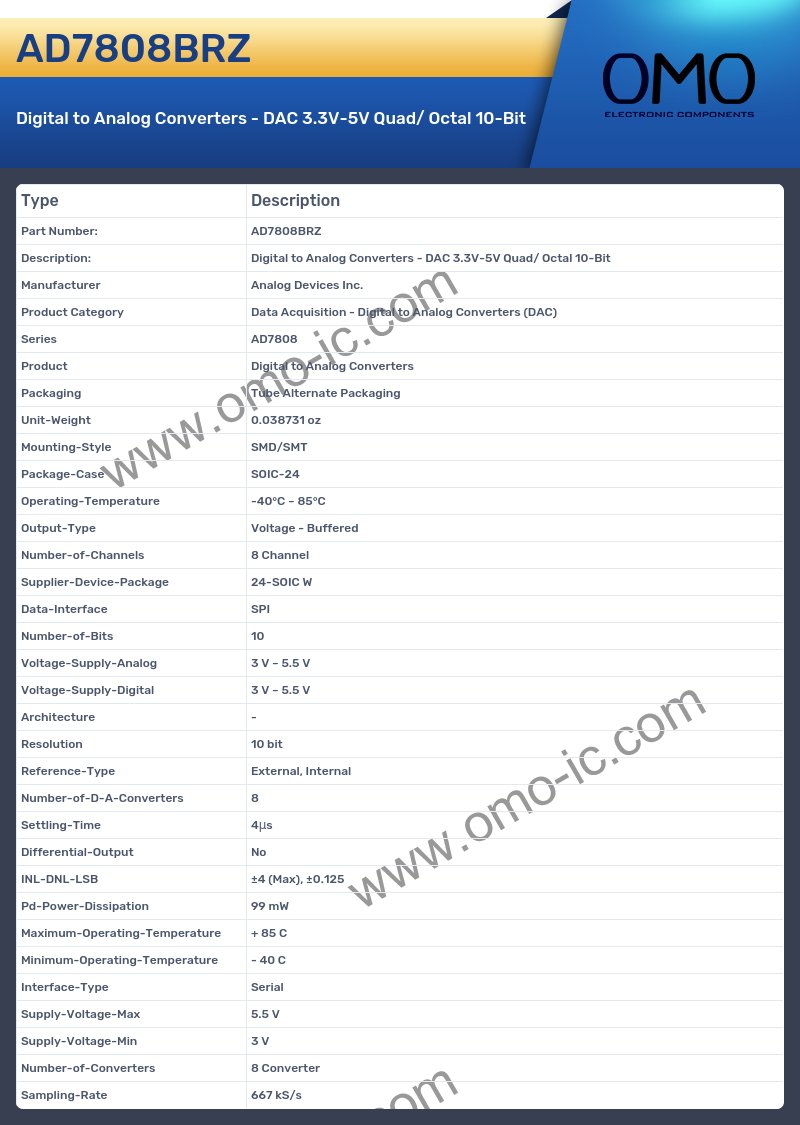

AD7808BRZ Image

AD7808BRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series AD7808
• Product Digital to Analog Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.038731 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Operating-Temperature -40°C ~ 85°C
• Output-Type Voltage - Buffered
• Number-of-Channels 8 Channel
• Supplier-Device-Package 24-SOIC W
• Data-Interface SPI
• Number-of-Bits 10
• Voltage-Supply-Analog 3 V ~ 5.5 V
• Voltage-Supply-Digital 3 V ~ 5.5 V
• Architecture -
• Resolution 10 bit
• Reference-Type External, Internal
• Number-of-D-A-Converters 8
• Settling-Time 4μs
• Differential-Output No
• INL-DNL-LSB ±4 (Max), ±0.125
• Pd-Power-Dissipation 99 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3 V
• Number-of-Converters 8 Converter
• Sampling-Rate 667 kS/s
