AD7793BRUZ

AD7793BRUZ Overview

Product belongs to the AD7793 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 3 Channel Supplier device package: 16-TSSOP This product's 470. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 2.5 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The +/- 10 uV of this product is 0.2%. Number-of-Converters: 1 Converter 4.17 S/s to 470 S/s Sampling Rate Integral Nonlinearity: +/- 15 ppm of FSR

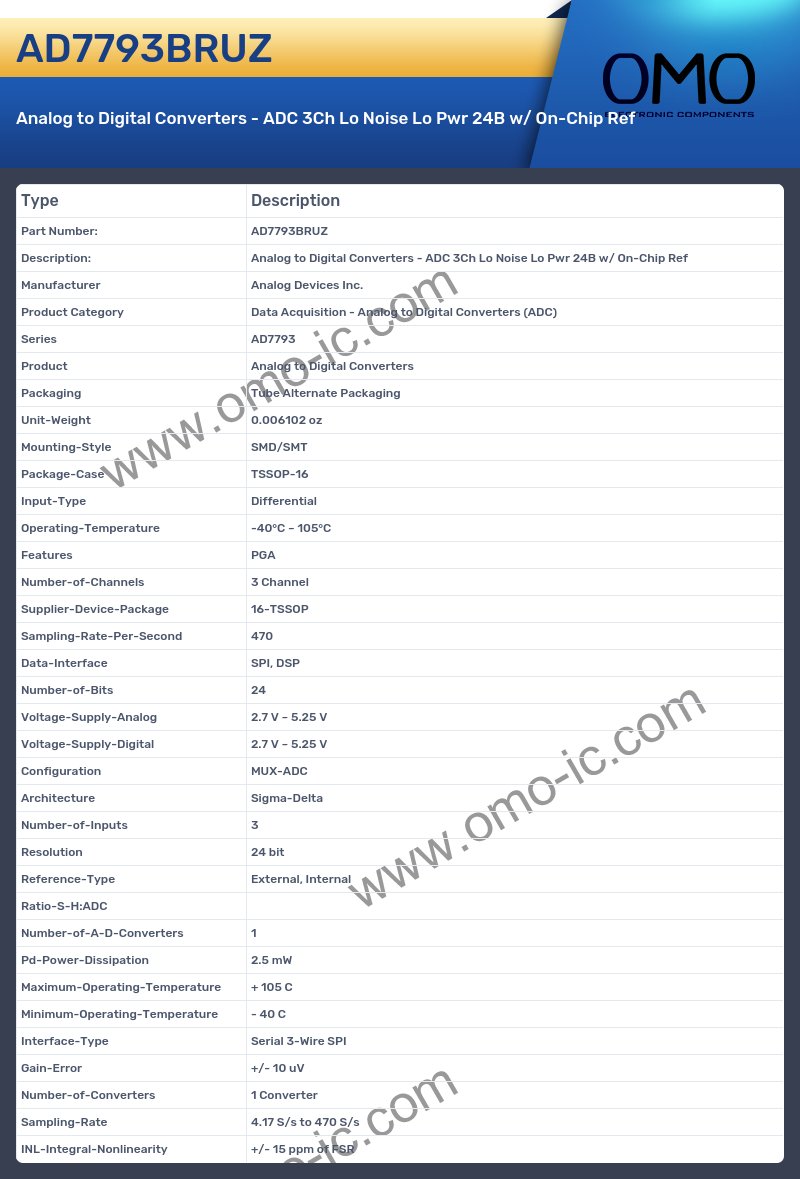

AD7793BRUZ Image

AD7793BRUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7793
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features PGA
• Number-of-Channels 3 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 470
• Data-Interface SPI, DSP
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 3
• Resolution 24 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 2.5 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Gain-Error +/- 10 uV
• Number-of-Converters 1 Converter
• Sampling-Rate 4.17 S/s to 470 S/s
• INL-Integral-Nonlinearity +/- 15 ppm of FSR
