AD7793BRU Overview

Product belongs to the AD7793 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 3 Channel Supplier device package: 16-TSSOP This product's 470. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 2.5 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The +/- 10 uV of this product is 0.2%. Number-of-Converters: 1 Converter 4.17 S/s to 470 S/s Sampling Rate Integral Nonlinearity: +/- 15 ppm of FSR

AD7793BRU Image

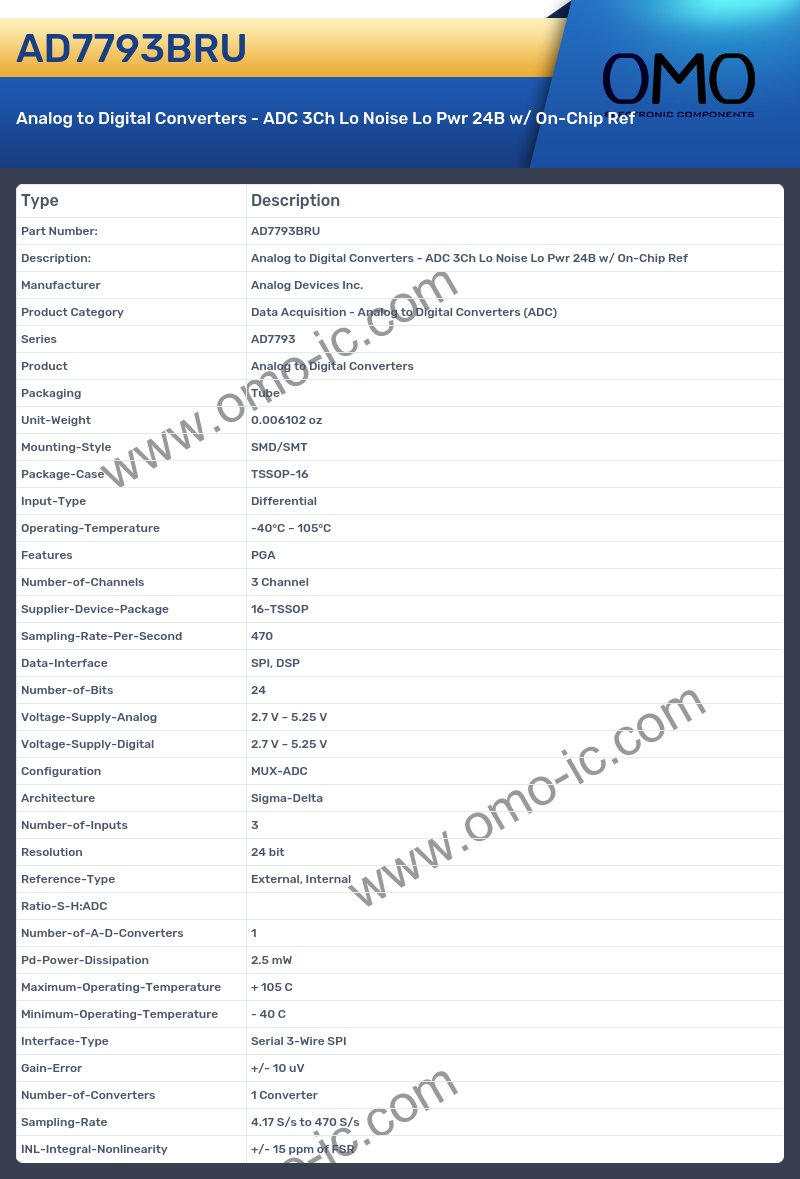

AD7793BRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7793
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features PGA
• Number-of-Channels 3 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 470
• Data-Interface SPI, DSP
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 3
• Resolution 24 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 2.5 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Gain-Error +/- 10 uV
• Number-of-Converters 1 Converter
• Sampling-Rate 4.17 S/s to 470 S/s
• INL-Integral-Nonlinearity +/- 15 ppm of FSR
