AD7789BRM

AD7789BRM Overview

Product belongs to the AD7789 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.005051 oz SMD/SMT Mounting-Style MSOP-10 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 10-MSOP This product's 16.6. Data-Interface: SPI, DSP 19 bits The Voltage-Supply-Analog is 2.5 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.5 V ~ 5.25 V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 400 uW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 3-Wire SPI interface type The +/- 10 uV of this product is 0.2%. Number-of-Converters: 1 Converter 16.6 S/s Sampling Rate Integral Nonlinearity: +/- 15 ppm of FSR

AD7789BRM Image

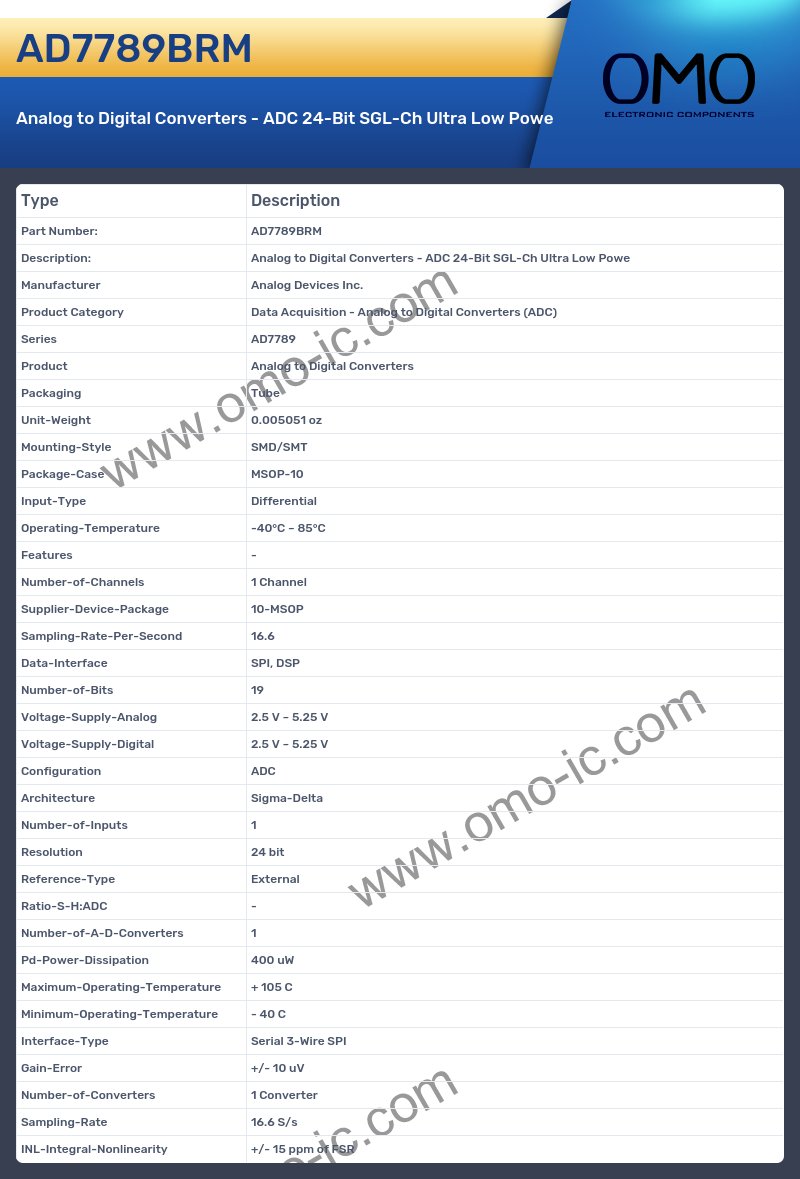

AD7789BRM Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7789
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.005051 oz
• Mounting-Style SMD/SMT
• Package-Case MSOP-10
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 10-MSOP
• Sampling-Rate-Per-Second 16.6
• Data-Interface SPI, DSP
• Number-of-Bits 19
• Voltage-Supply-Analog 2.5 V ~ 5.25 V
• Voltage-Supply-Digital 2.5 V ~ 5.25 V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 400 uW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 3-Wire SPI
• Gain-Error +/- 10 uV
• Number-of-Converters 1 Converter
• Sampling-Rate 16.6 S/s
• INL-Integral-Nonlinearity +/- 15 ppm of FSR
