AD7783BRUZ

AD7783BRUZ Overview

Product belongs to the AD7783 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.006102 oz SMD/SMT Mounting-Style TSSOP-16 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 16-TSSOP This product's 19.79. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V, 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 8.5 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 3.9 mW. Serial 3-Wire SPI interface type The EVAL-AD7783EBZ. The +/- 10 uV of this product is 0.2%. Number-of-Converters: 1 Converter 19.79 S/s Sampling Rate Integral Nonlinearity: +/- 10 ppm of FSR

AD7783BRUZ Image

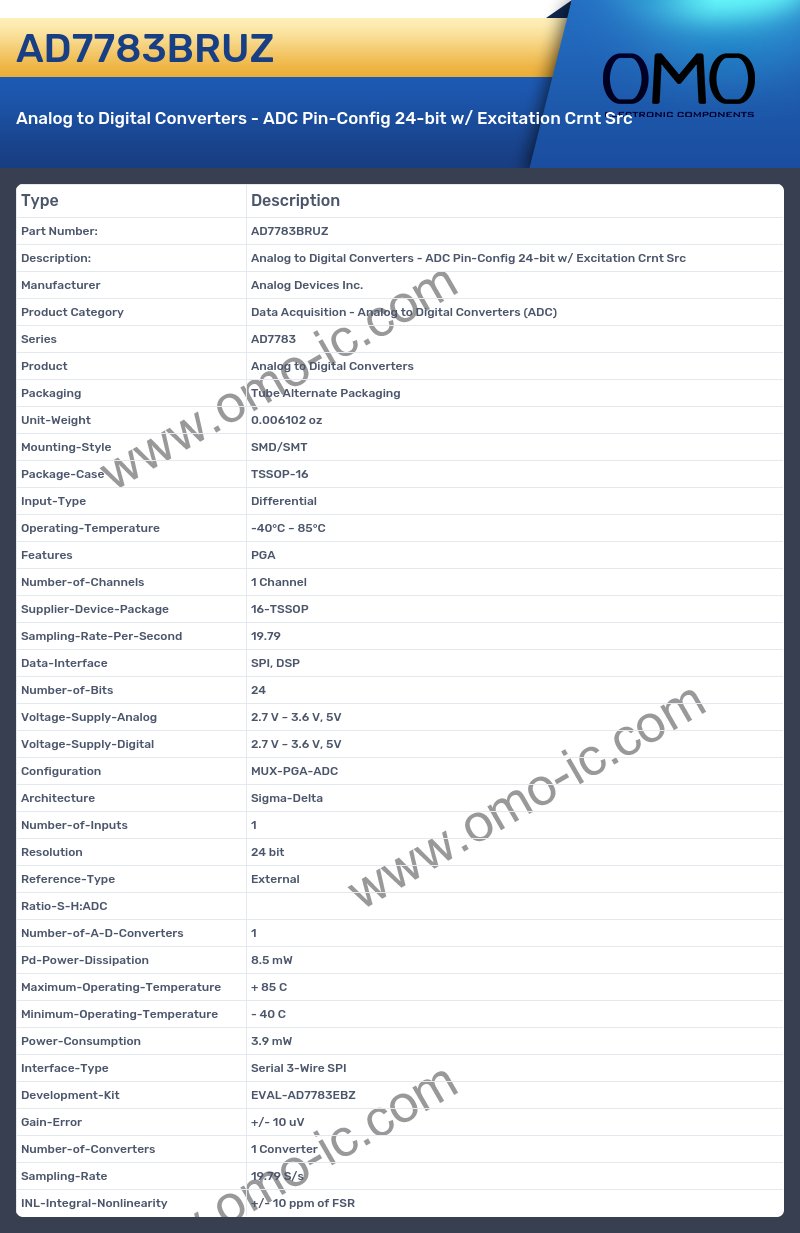

AD7783BRUZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7783
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006102 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-16
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 1 Channel
• Supplier-Device-Package 16-TSSOP
• Sampling-Rate-Per-Second 19.79
• Data-Interface SPI, DSP
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 3.6 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V, 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 8.5 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 3.9 mW
• Interface-Type Serial 3-Wire SPI
• Development-Kit EVAL-AD7783EBZ
• Gain-Error +/- 10 uV
• Number-of-Converters 1 Converter
• Sampling-Rate 19.79 S/s
• INL-Integral-Nonlinearity +/- 10 ppm of FSR
