AD7781CRZ

AD7781CRZ Overview

Product belongs to the AD7781 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.011923 oz SMD/SMT Mounting-Style SOIC-14 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 1 Channel Supplier device package: 14-SO This product's 16.7. Data-Interface: SPI 20 bits The Voltage-Supply-Analog is 2.7 V ~ 5.25 V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 2.1 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C Serial 2-Wire SPI interface type The EVAL-AD7781EBZ. The +/- 0.25 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 16.7 S/s Sampling Rate Integral Nonlinearity: +/- 6 ppm of FSR

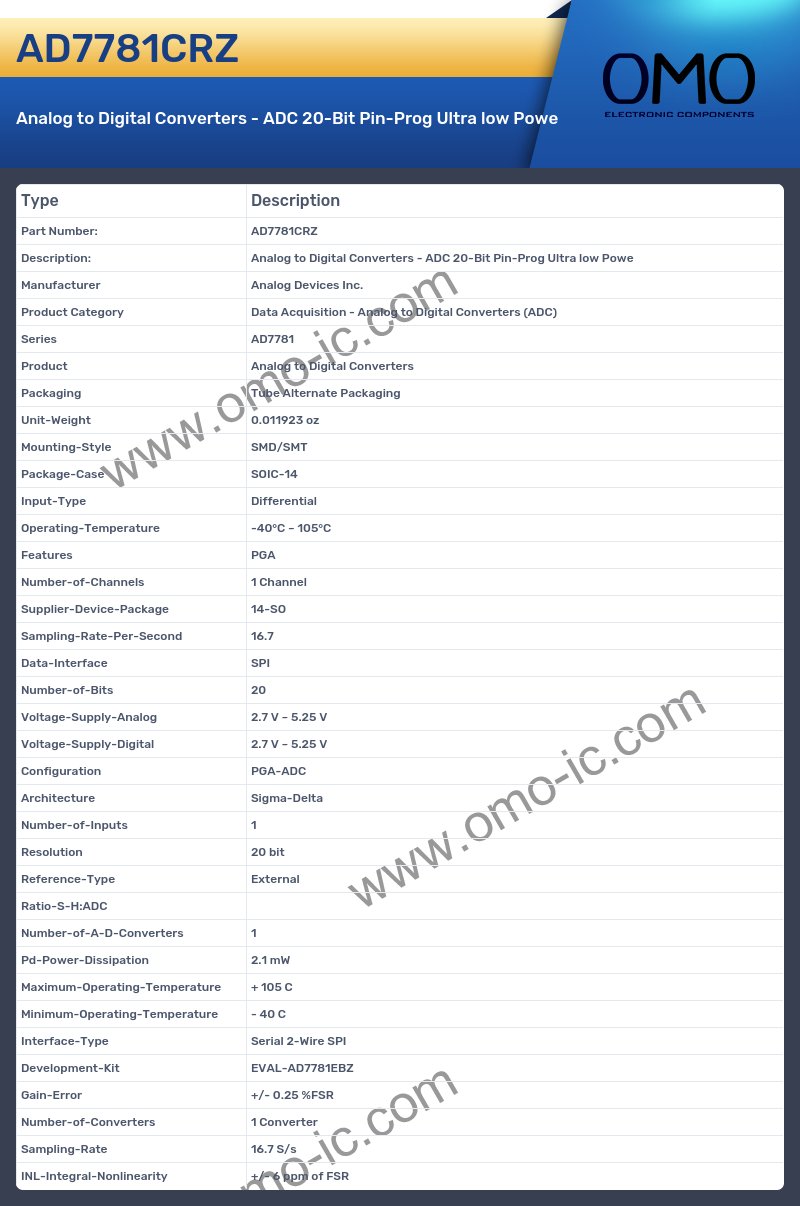

AD7781CRZ Image

AD7781CRZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7781
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.011923 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Input-Type Differential
• Operating-Temperature -40°C ~ 105°C
• Features PGA
• Number-of-Channels 1 Channel
• Supplier-Device-Package 14-SO
• Sampling-Rate-Per-Second 16.7
• Data-Interface SPI
• Number-of-Bits 20
• Voltage-Supply-Analog 2.7 V ~ 5.25 V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 1
• Resolution 20 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 2.1 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial 2-Wire SPI
• Development-Kit EVAL-AD7781EBZ
• Gain-Error +/- 0.25 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 16.7 S/s
• INL-Integral-Nonlinearity +/- 6 ppm of FSR
