AD774BARZ

AD774BARZ Overview

Product belongs to the AD774B series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.078125 oz SMD/SMT Mounting-Style SOIC-28 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 12 Channel Supplier device package: 28-SOIC W This product's -. Data-Interface: Parallel 12 bits The Voltage-Supply-Analog is ±11.4 V ~ 16.5 V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is SAR . Internal is the reference type. 1 units Power-off control: 825 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Parallel interface type Number-of-Converters: 1 Converter 125 kS/s Sampling Rate Integral Nonlinearity: +/- 1 LSB Reference voltage is 10 V .

AD774BARZ Image

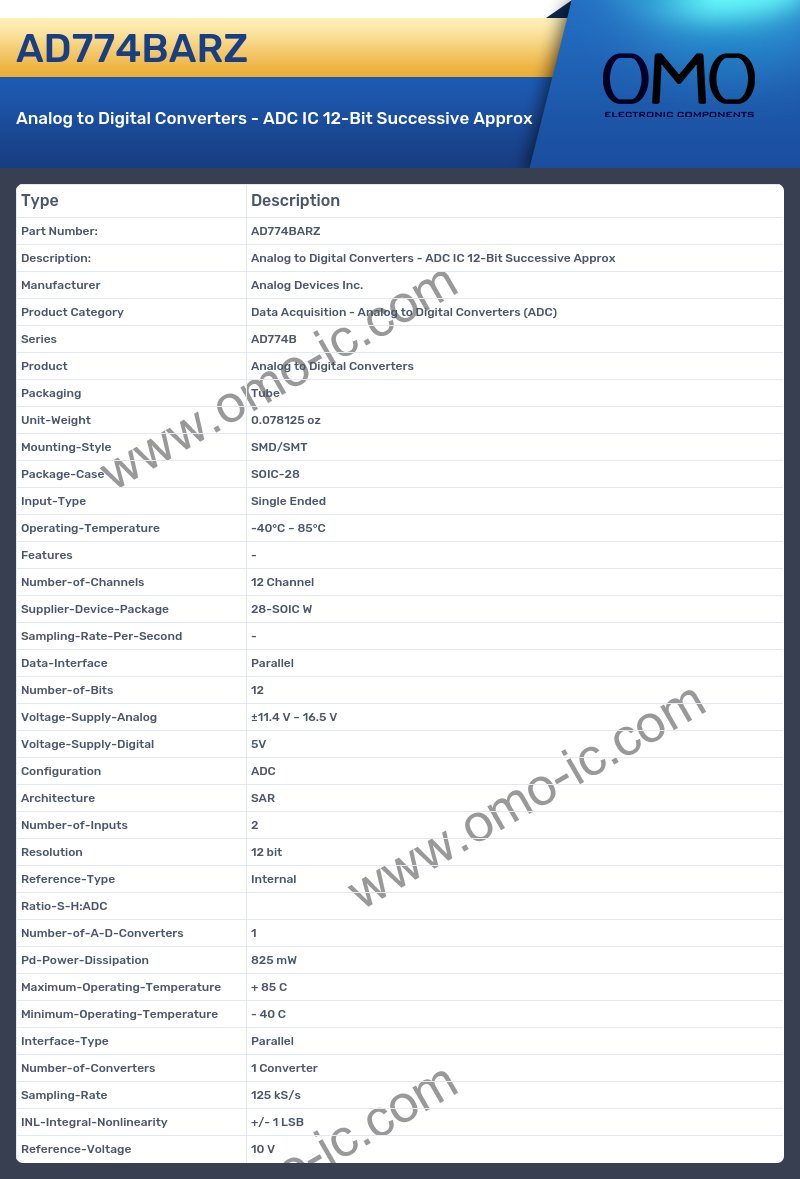

AD774BARZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD774B
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.078125 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-28
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 12 Channel
• Supplier-Device-Package 28-SOIC W
• Sampling-Rate-Per-Second -
• Data-Interface Parallel
• Number-of-Bits 12
• Voltage-Supply-Analog ±11.4 V ~ 16.5 V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture SAR
• Number-of-Inputs 2
• Resolution 12 bit
• Reference-Type Internal
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 825 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Parallel
• Number-of-Converters 1 Converter
• Sampling-Rate 125 kS/s
• INL-Integral-Nonlinearity +/- 1 LSB
• Reference-Voltage 10 V
