AD7724ASTZ

AD7724ASTZ Overview

Product belongs to the AD7724 series. Type: Modulator Tray Alternate Packaging is the packaging method for this product Weight of 0.006409 oz SMD/SMT Mounting-Style LQFP-48 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Number of channels: 2 Channel Voltage Supply Range: 2.85 V ~ 5.25 V, 4.75 V ~ 5.25 V Supplier device package: 48-LQFP (7x7) Resolution-Bits: 15 b This product's 250k. Data-Interface: Serial Voltage supply source: Analog and digital Analog and Digital The architecture of this product is Sigma-Delta . External Internal is the reference type. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 5 V supply voltage for reliable performance. This product has a Power Consumption of 300 mW. Serial interface type The +/- 0.6 %FSR of this product is 0.2%. Number-of-Converters: 2 Converter 250 kS/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR

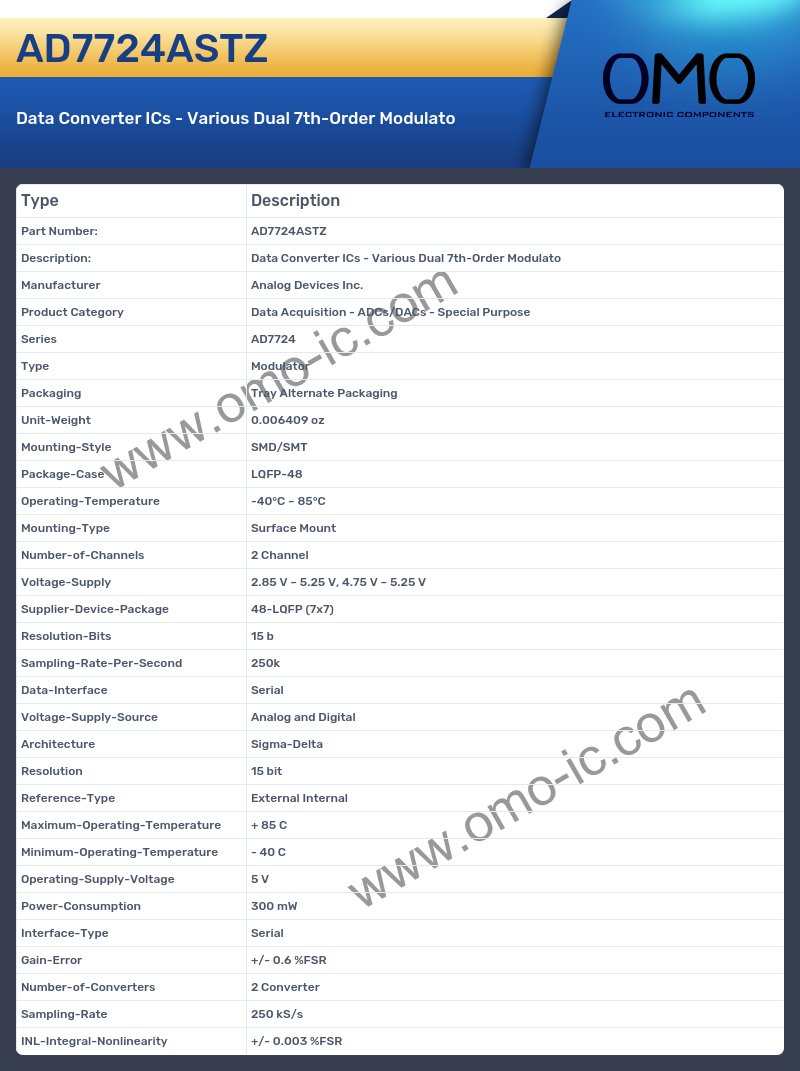

AD7724ASTZ Image

AD7724ASTZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - ADCs/DACs - Special Purpose
• Series AD7724
• Type Modulator
• Packaging Tray Alternate Packaging
• Unit-Weight 0.006409 oz
• Mounting-Style SMD/SMT
• Package-Case LQFP-48
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Number-of-Channels 2 Channel
• Voltage-Supply 2.85 V ~ 5.25 V, 4.75 V ~ 5.25 V
• Supplier-Device-Package 48-LQFP (7x7)
• Resolution-Bits 15 b
• Sampling-Rate-Per-Second 250k
• Data-Interface Serial
• Voltage-Supply-Source Analog and Digital
• Architecture Sigma-Delta
• Resolution 15 bit
• Reference-Type External Internal
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 5 V
• Power-Consumption 300 mW
• Interface-Type Serial
• Gain-Error +/- 0.6 %FSR
• Number-of-Converters 2 Converter
• Sampling-Rate 250 kS/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
