AD7718BRU

AD7718BRU Overview

Product belongs to the AD7718 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.014215 oz SMD/SMT Mounting-Style TSSOP-28 The Differential, Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 10 Channel Supplier device package: 28-TSSOP This product's 1.37k. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 2.7 V ~ 3.6 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 3.6 V, 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 8.75 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product has a Power Consumption of 3.84 mW. Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 126 dB The EVAL-AD7718EBZ. The +/- 0.003 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 1.365 kS/s Sampling Rate Integral Nonlinearity: +/- 10 ppm of FSR

AD7718BRU Image

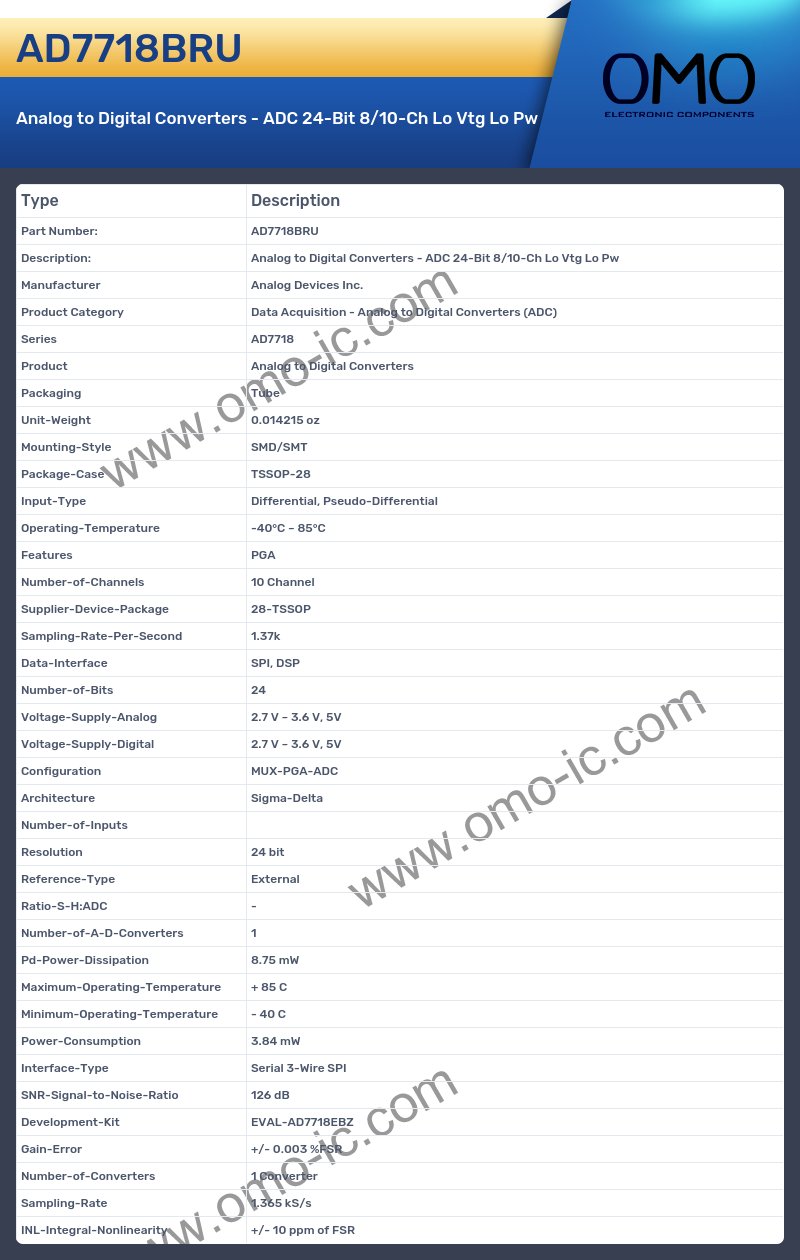

AD7718BRU Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7718
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.014215 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-28
• Input-Type Differential, Pseudo-Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 10 Channel
• Supplier-Device-Package 28-TSSOP
• Sampling-Rate-Per-Second 1.37k
• Data-Interface SPI, DSP
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 3.6 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 3.6 V, 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 8.75 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 3.84 mW
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 126 dB
• Development-Kit EVAL-AD7718EBZ
• Gain-Error +/- 0.003 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 1.365 kS/s
• INL-Integral-Nonlinearity +/- 10 ppm of FSR
