AD7716BSZ

AD7716BSZ Overview

Product belongs to the AD7716 series. This product is categorized as Analog to Digital Converters Tray is the packaging method for this product Weight of 0.017588 oz SMD/SMT Mounting-Style QFP-44 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 4 Channel Supplier device package: 44-MQFP (10x10) This product's 2.2k. Data-Interface: SPI 22 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration ADC The architecture of this product is Sigma-Delta . External is the reference type. 4 units Power-off control: 50 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Signal-to-Noise Ratio of 108 dB The 1 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 2.2 kS/s Sampling Rate Integral Nonlinearity: 0.006 %FSR

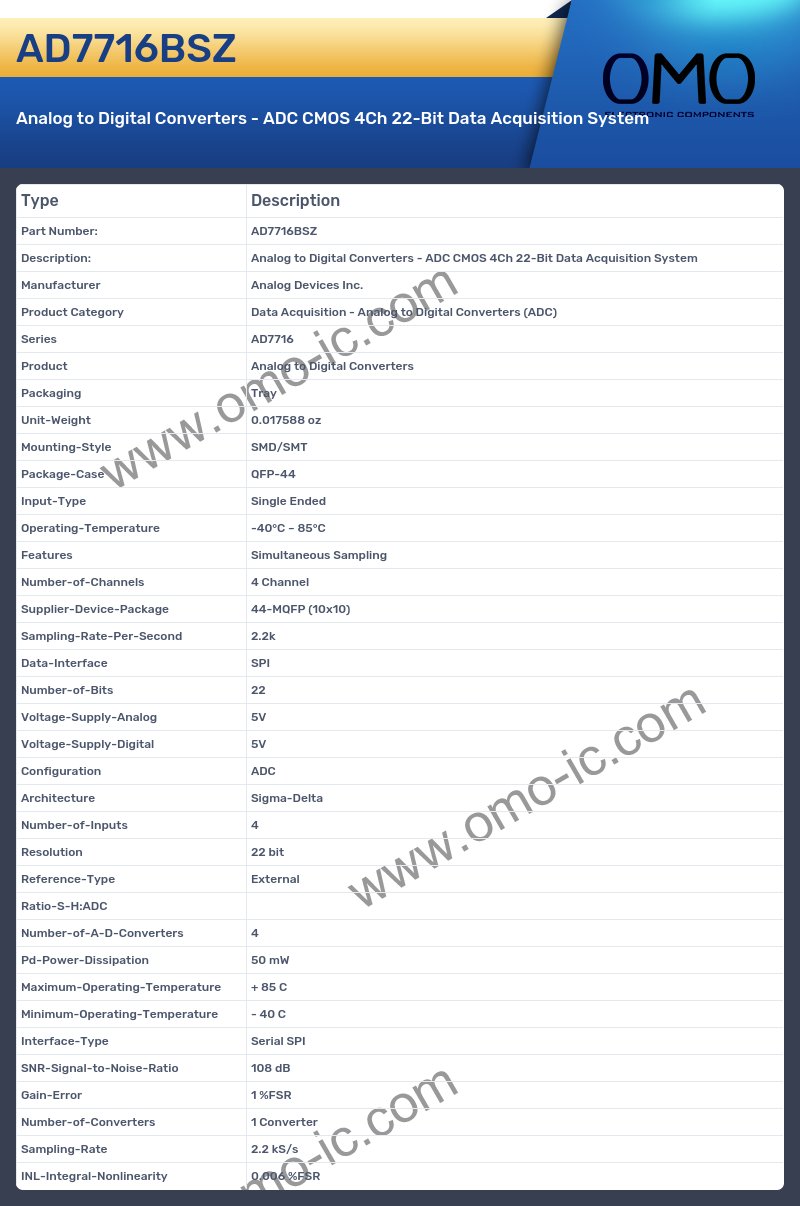

AD7716BSZ Image

AD7716BSZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7716
• Product Analog to Digital Converters
• Packaging Tray
• Unit-Weight 0.017588 oz
• Mounting-Style SMD/SMT
• Package-Case QFP-44
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 4 Channel
• Supplier-Device-Package 44-MQFP (10x10)
• Sampling-Rate-Per-Second 2.2k
• Data-Interface SPI
• Number-of-Bits 22
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration ADC
• Architecture Sigma-Delta
• Number-of-Inputs 4
• Resolution 22 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 4
• Pd-Power-Dissipation 50 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• SNR-Signal-to-Noise-Ratio 108 dB
• Gain-Error 1 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 2.2 kS/s
• INL-Integral-Nonlinearity 0.006 %FSR
