AD7714YNZ

AD7714YNZ Overview

Product belongs to the AD7714 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.131925 oz Through Hole Mounting-Style PDIP-24 The Differential, Pseudo-Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 105°C Number of channels: 5 Channel Supplier device package: 24-PDIP This product's 1k. Data-Interface: SPI, DSP 24 bits The Voltage-Supply-Analog is 2.7 V ~ 3.3 V, 5V. The Voltage Supply Digital for this product is 2.7 V ~ 5.25 V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External is the reference type. 1 units Power-off control: 7 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product has a Power Consumption of 3.75 mW. Serial 3-Wire SPI interface type Signal-to-Noise Ratio of 137 dB The EVAL-AD7714-3EBZ. The +/- 0.003 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 1 kS/s Sampling Rate Integral Nonlinearity: +/- 0.0015 %FSR

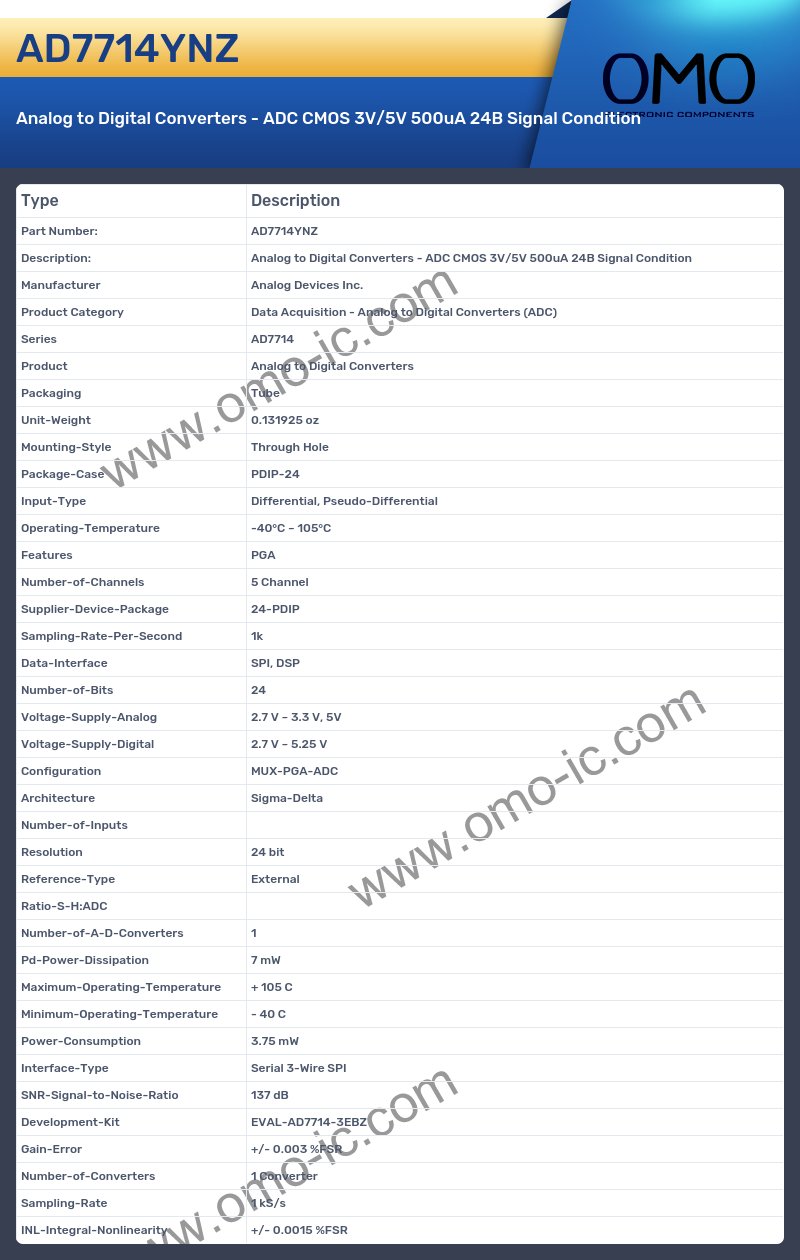

AD7714YNZ Image

AD7714YNZ Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7714
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.131925 oz
• Mounting-Style Through Hole
• Package-Case PDIP-24
• Input-Type Differential, Pseudo-Differential
• Operating-Temperature -40°C ~ 105°C
• Features PGA
• Number-of-Channels 5 Channel
• Supplier-Device-Package 24-PDIP
• Sampling-Rate-Per-Second 1k
• Data-Interface SPI, DSP
• Number-of-Bits 24
• Voltage-Supply-Analog 2.7 V ~ 3.3 V, 5V
• Voltage-Supply-Digital 2.7 V ~ 5.25 V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs
• Resolution 24 bit
• Reference-Type External
• Ratio-S-H:ADC
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 7 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Power-Consumption 3.75 mW
• Interface-Type Serial 3-Wire SPI
• SNR-Signal-to-Noise-Ratio 137 dB
• Development-Kit EVAL-AD7714-3EBZ
• Gain-Error +/- 0.003 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 1 kS/s
• INL-Integral-Nonlinearity +/- 0.0015 %FSR
