AD7711AR

AD7711AR Overview

Product belongs to the AD7711 series. This product is categorized as Analog to Digital Converters Type: S/H ADC Tube Alternate Packaging is the packaging method for this product Weight of 0.038731 oz SMD/SMT Mounting-Style SOIC-24 The Differential for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel Supplier device package: 24-SOIC This product's 1k. Data-Interface: SPI 24 bits The Voltage-Supply-Analog is 5 V ~ 10 V. The Voltage Supply Digital for this product is 5V. Configuration MUX-PGA-ADC The architecture of this product is Sigma-Delta . External, Internal is the reference type. 1 units Power-off control: 53 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 55 C This product has a Power Consumption of 30 mW. Serial 3-Wire 4-Wire interface type Signal-to-Noise Ratio of 131 dB The +/- 0.006 %FSR of this product is 0.2%. Number-of-Converters: 1 Converter 1.028 kS/s Sampling Rate Integral Nonlinearity: +/- 0.003 %FSR

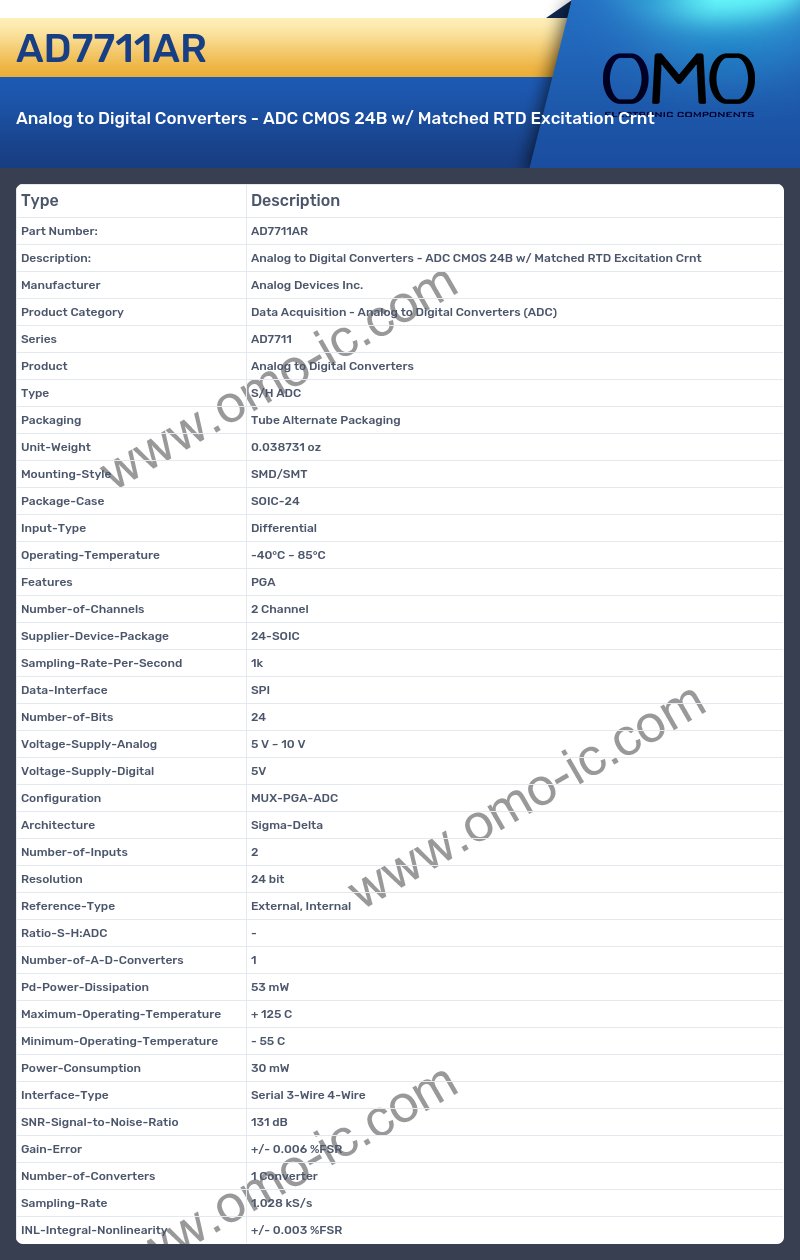

AD7711AR Image

AD7711AR Specifications

• Manufacturer Analog Devices Inc.
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series AD7711
• Product Analog to Digital Converters
• Type S/H ADC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.038731 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-24
• Input-Type Differential
• Operating-Temperature -40°C ~ 85°C
• Features PGA
• Number-of-Channels 2 Channel
• Supplier-Device-Package 24-SOIC
• Sampling-Rate-Per-Second 1k
• Data-Interface SPI
• Number-of-Bits 24
• Voltage-Supply-Analog 5 V ~ 10 V
• Voltage-Supply-Digital 5V
• Configuration MUX-PGA-ADC
• Architecture Sigma-Delta
• Number-of-Inputs 2
• Resolution 24 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC -
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 53 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 55 C
• Power-Consumption 30 mW
• Interface-Type Serial 3-Wire 4-Wire
• SNR-Signal-to-Noise-Ratio 131 dB
• Gain-Error +/- 0.006 %FSR
• Number-of-Converters 1 Converter
• Sampling-Rate 1.028 kS/s
• INL-Integral-Nonlinearity +/- 0.003 %FSR
